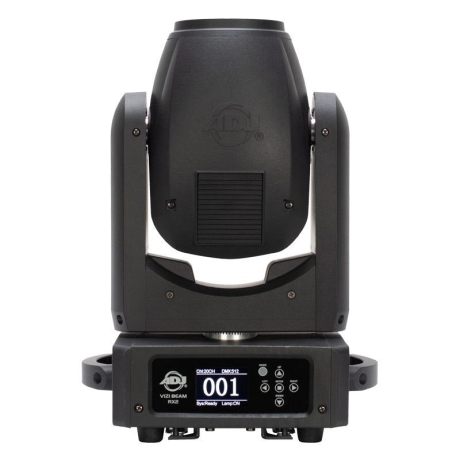

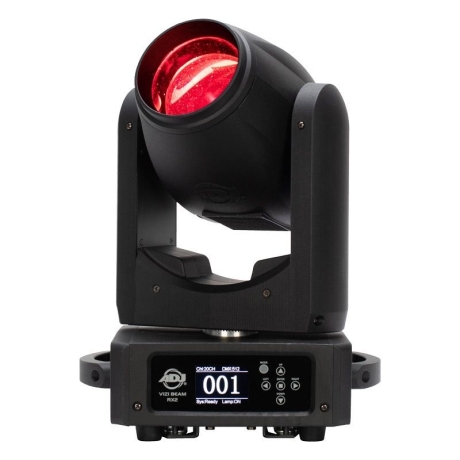

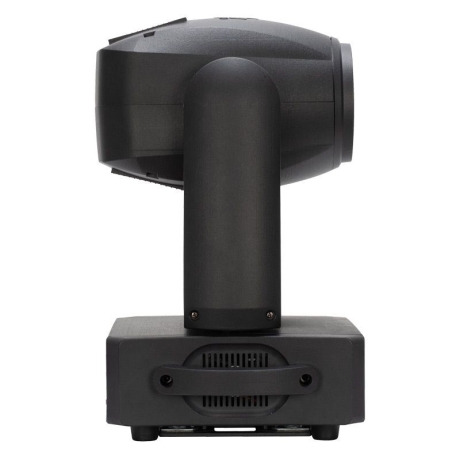

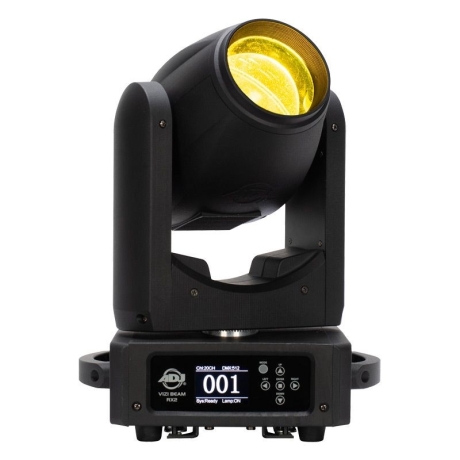

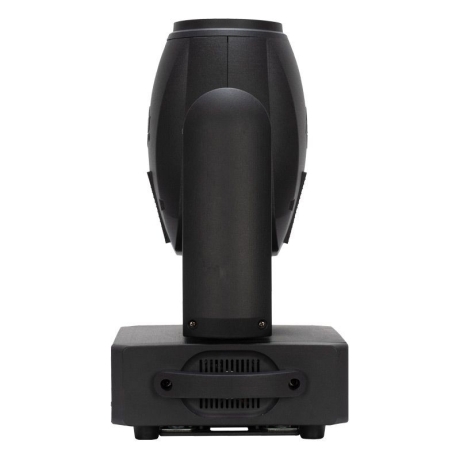

ADJ Vizi Beam RX2

These units are ADJ B-Stock and come with a 90 day manufacturer warranty.  All fixtures are cleaned and tested before leaving the building.

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Vizi Beam RX2 is designed for live events and venues looking for a small footprint lighting fixture that creates high impact lightshow.

Beam Performance and Fast Movement

Built for cutting through haze and staying crisp at distance, the Vizi Beam RX2 combines a high quality glass lens with motorized focus (including 16-bit fine focus) to keep beams sharp across different throws. Pan and tilt movement is fast and precise with a 540-degree pan and 270-degree tilt (both with 16-bit fine control), making it well-suited for concerts, mobile rigs, clubs, and tight stages where rapid repositioning matters.

Color, GOBO, and Atmosphere Effects

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers). The indexable color wheel enables split colors for more layered looks, while GOBO shake adds motion and texture without changing the fixture position.

Prisms, Frost, and Show Looks

The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Control, Connectivity, and Power Daisy-Chaining

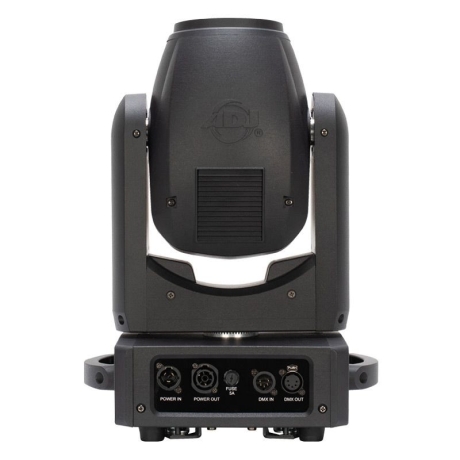

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. For system integration, it supports DMX512 and RDM, and offers 12- or 16-channel DMX modes for simpler programming or deeper control. On-board wireless DMX is available, and OTA wireless firmware updates help keep fixtures consistent across a rig.

Electrical and Physical Details

• Lamp: OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
• Color temperature: 9000K (+/- 300K)
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 168W (@120V), 157W (@230V)
• Fuse protected: 3.15A
• Dimensions: 9” (L) x 12” (W) x 16.3” (H) (230 x 304 x 416mm)
• Weight: 16.5 lbs. / 7.5 kg

The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.
