LiteGear LiteTile Plus 8

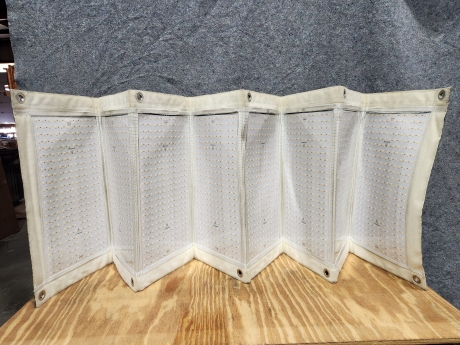

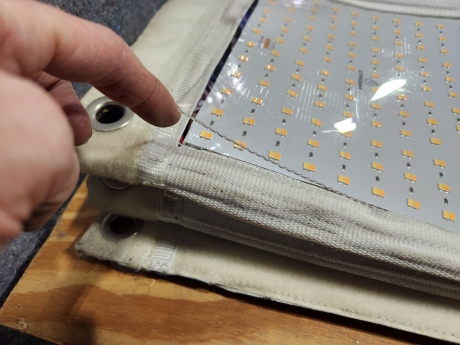

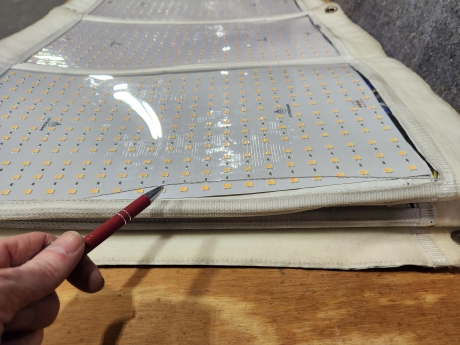

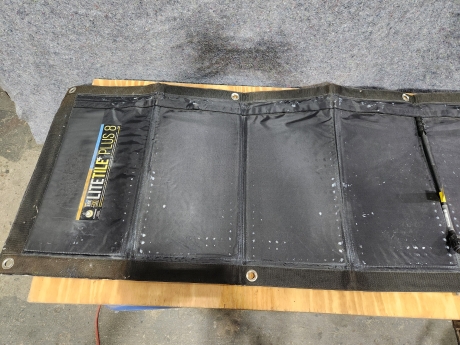

This LiteGear LiteTile Plus 8 LED fixture show signs of wear and is in good working condition. A power supply is not included. One of the plastic windows is separated from the lining at the stitching on one side and one window is separated at one corner. The fixture is still functional.

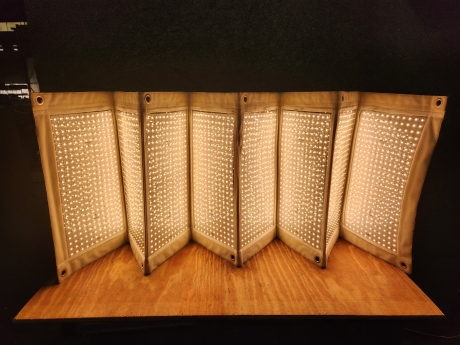

LiteGear LiteTile Plus 8 is a foldable LED lighting fixture made with engineered textiles, designed to place thin, soft, adjustable Kelvin light in areas that are difficult to reach with rigid panels, including walls, ceilings, and tight sets.

LITETILE PLUS 8 is the first foldable LED lighting fixture made completely with engineered textiles. LiteTile+ Plus 8 allows the user to install thin, soft, and adjustable Kelvin light into areas previously inaccesible. Because LiteTile+ Plus folds up to 180º between each light engine, the luminaire can be shaped into numerous configurations allowing for 360º, two-sided, or irregularly shaped setups. LiteTile+ Plus 8 can be directly attached to walls or ceiling surfaces such as office drop-ceilings with just spring-clips or tape. The LiteTile+ Plus 8 really shows its versatility when four units are coupled together and attached to a overhead/butterfly 8’ x 8’ frame. That is 1600 watts and more than 18400 cinema quality emitters creating ultra-soft Hybrid light output without the need for additional diffusion.

Performance and control

With 4,608 LEDs and 0 to 100% continuous dimming, LiteTile Plus 8 is well suited for film and studio workflows where smooth intensity adjustments are essential. It operates on 24V DC and draws 16.67A, with a power rating listed at 400W.

Build, mounting, and operating environment

The low-profile textile construction measures 24" x 92" x 0.75" (610 x 2337 x 19 mm) and weighs 7.6 lbs (3.5 kg), making it easier to rig on surfaces where space and weight are limited. It is rated IP50 and specified for operation from -10 to =50 Deg C (14 to 122 Deg F).
