Unilumin UpadIV 2.6mm LED Video Tile (Pkg of 8)

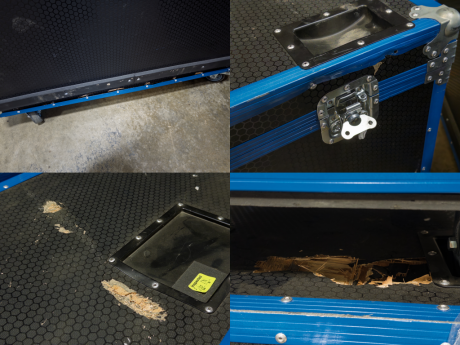

This listing is for a Package of (8) Unilumin UpadIV 2.6mm LED Video Tiles. These tiles have been tested and are in good working condition. An 8-unit road case is included with these units. Mounting/hanging hardware, power cables, and data cables are not included.

Indoor LED Wall Building Block for Events and Installations

The Unilumin UpadIV 2.6mm LED video tile is designed for indoor video walls where close viewing and clean pixel structure matter, including corporate stages, houses of worship, broadcast sets, trade shows, and permanent lobby or venue displays. With a 2.6mm pixel pitch and a recommended viewing distance of at least 2.6 meters, it is well-suited for applications where audiences are relatively close without sacrificing image uniformity.

Image Quality and Performance

Each panel uses a 3-in-1 Black SMD LED package for strong perceived contrast and a wide 160° horizontal and vertical viewing angle, helping content remain consistent across the room. Brightness is rated at 1200 cd/m², and the stated contrast ratio is 6000:1, supporting punchy imagery in typical indoor lighting. The tile supports brightness and chroma calibration and offers adjustable color temperature from 2,000K to 9,300K for matching cameras, ambient lighting, or adjacent display systems.

For fast-motion content and camera-facing environments, the panel is specified at 7680 Hz refresh rate at 60 Hz with 16-bit processing depth and 50/60 Hz video frame rate support, helping reduce scan artifacts and improving smooth gradients.

Panel Format, Handling, and System Integration

Each die-cast magnesium panel measures 500mm×500mm×70.1mm and weighs 6.3 kg, providing a practical balance of rigidity and manageable handling for setups and strike. The active display area per panel is 0.25 m², with 192×192 pixels per panel and a pixel density of 147,456 pixels/m².

Control system compatibility is specified for Nova and Brompton workflows, making the tiles easier to integrate into common LED processing and control environments used in live production and fixed installations.

Power and Operating Notes

The panels support 100 to 240 VAC input voltage at 50 to 60 Hz. Power consumption is listed as 150/155 W per panel and 50/52 W per panel (as specified). LED lifetime is rated at 100,000 hours under typical LED life assumptions.
