ADJ Focus Flex L19

These units are ADJ B-Stock and come with a 90 day manufacturer warranty.  All fixtures are cleaned and tested before leaving the building.

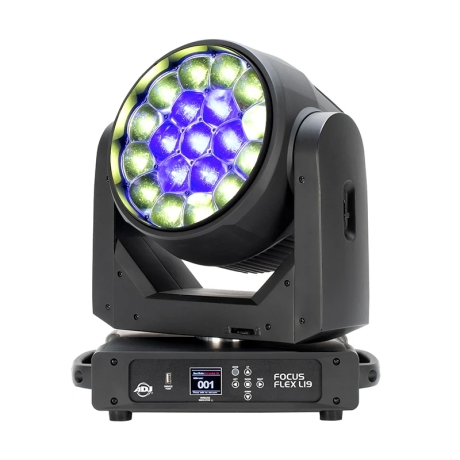

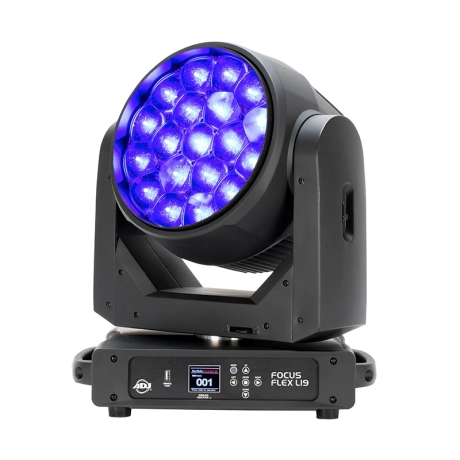

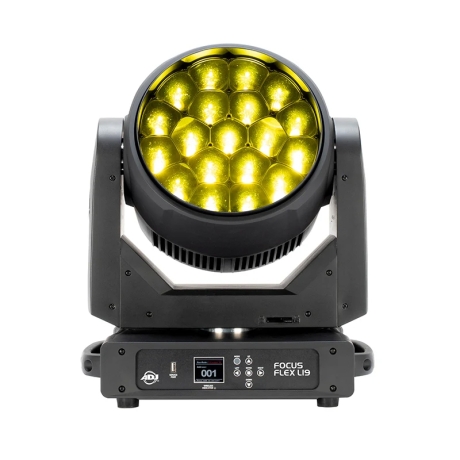

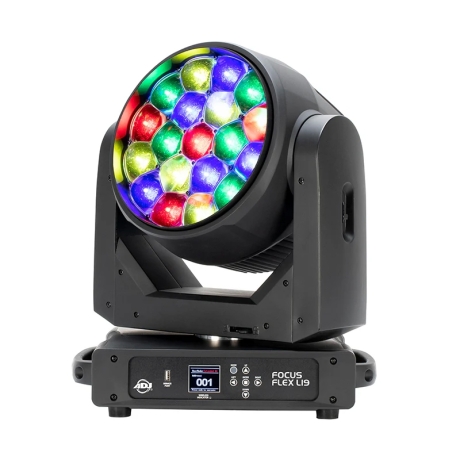

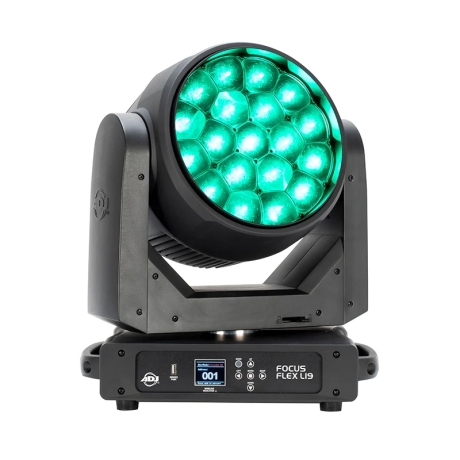

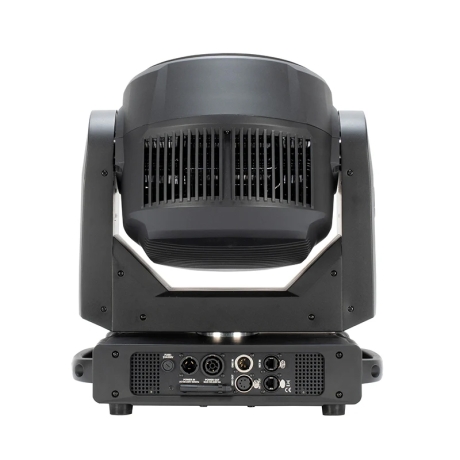

Robust and punchy, the ADJ Focus Flex L19 is a versatile moving head luminaire built to deliver wash, beam, and pixel effects from a single fixture. Designed for event production and rental workflows as well as permanent installs, it fits naturally in concert halls, theatres, nightclubs, and houses of worship where fast looks, consistent color, and reliable movement matter.

RGBL color mixing with calibrated pixels

The fixture is powered by an array of nineteen 40-Watt 4-in-1 RGBL color mixing LEDs, each of which can be controlled independently for pixel-mapped looks and dynamic chases. By mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit different scenes and camera environments. All LEDs are color calibrated to help ensure uniform output and color matching between fixtures from different production batches.

For hybrid rigs and streamlined programming, the Focus Flex L19 includes a convenient Virtual CMY mode, allowing control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallete tools. It also offers Virtual Foreground and Background Color Wheel control, plus white light output with variable color temperature from 2700K to 10,000K, accessible either via linear control or 10 presets.

Zoom range for wide washes to tight beams

Motorized zoom allows the field angle to be altered remotely between a wide 50-degrees and a narrow 5-degrees, so the same fixture can cover broad stage washes or tighten into more concentrated aerial looks. Photometric performance includes 39,975 lux / 4.3° beam @ 16’ (5m) and 1,422 lux / 28.3° beam @ 16’ (5m), with up to 7,814 lumens (zoomed out, full on).

Fast movement and precise positioning

Quick motor movement supports high-impact aerial effects, while 16-bit fine pan and tilt motor control helps deliver accurate, repeatable positioning. Pan and tilt ranges are 540/630 x 260.

Control options and fixture management

A flexible fixture, the Focus Flex L19 offers 6 DMX mode options to suit different console setups and channel budgets, plus built-in pixel effect programs for fast show-building. Customizable options include selectable LED refresh rate (900 Hz to 25K Hz) and dimming behavior, including multiple dim modes (Standard, Stage, TV, Arch., Theatre, Stage 2, and user-settable dim speed from 0.1S to 10S) and four dim curves (Square, Linear, Inverse Square, and S-Curve).

Settings are accessed through a color LCD display with a 6-button menu interface on the side panel, alongside a USB port for easy updates of future firmware releases. The fixture also supports the Aria X2 Wireless Management System for streamlined wireless fixture management in compatible environments.
