Avolites Quartz Titan
Description

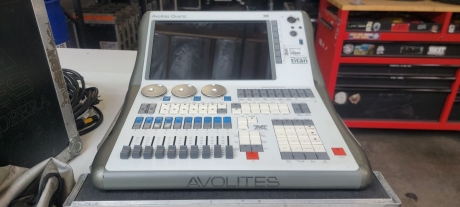

This Avolites Quartz Titan console shows minor wear and is in good working condiiton.
The Avolites Quartz Titan is a compact, full-featured lighting control console designed for flexible show control in touring, festivals, clubs, and one-off events. With on-board processing and a bright, vibrant 12.1” angled touchscreen, it delivers a capable programming surface in a small footprint, measuring just 42.5cm wide, making it easy to fit at FOH, in a production booth, or inside a road case workflow. Offering full compatibility with Multi user, the Quartz is also well suited as a back-up console or an additional programming surface to help reduce programming time on larger systems.
Control, Networking, and Output Options

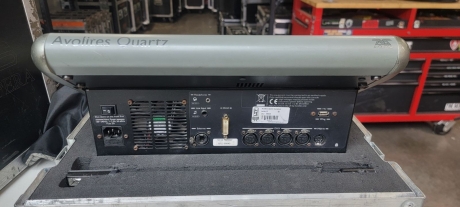

For physical output, the console provides 4 DMX XLR-5 connectors and supports 16 DMX universes from the console (8192 channels) for managing rigs that go well beyond a single DMX line. A gigabit network port supports Titan Net, Art-Net, and streaming ACN, and the Quartz is compatible with Titan Net for expansion up to 64 universes, which is ideal when distributing DMX over network to nodes across a venue or stage.
Hands-On Playback and Fast Programming
The Quartz includes 10 precision playback faders, 3 high quality optical encoders, and 20 programmable macro buttons for quick access to frequently used cues, looks, and workflows. The button layout is harmonised with the rest of the Titan range, helping operators move between Titan consoles with minimal adjustment. It also supports multi-band Sound-to-Light for audio-reactive effects when desired.
Displays, Connectivity, and Touring Practicalities
In addition to the built-in touchscreen with brightness control, the console offers DVI-D for an external display, a headphone output for monitoring, and a conveniently located front panel mounted super speed USB3 port for show files and accessories. Built-in MIDI input is included with no extra boxes required, and Titan Remote compatibility supports remote control options in appropriate setups. The chassis is designed for road use with robust construction.
Size and Weight
- 425 x 466 x 194 mm
- 8Kg (17.6 lbs)
Additional Details
- Compact form - just 42.5cm wide
- 4 physical DMX XLR-5 connectors
- 16 DMX universes from the console - 8192 channels
- Compatible with Titan Net - up to 64 universes
- Gigabit network port for Titan Net, Artnet and streaming ACN
- Built in MIDI input, no extra boxes required
- 10 precision playback faders
- 3 high quality optical encoders
- Compatible with Titan Remote
- 20 programmable macro buttons
- Supports multi-band Sound-to-Light
- Bright and vibrant 12.1" angled touch screen with brightness control
- DVI-D for external display
- Headphone output
- Button layout harmonised with the rest of the Titan range
- Robust construction - built for life on the road
- Conveniently located front panel mounted super speed USB3 port
- 425 x 466 x 194 mm
- 8Kg (17.6 lbs)
- (1) Quartz Titan
- (1) Power Cable
- (1) Dust Cover
- (1) Desk Lamp
- (1) Road Case
