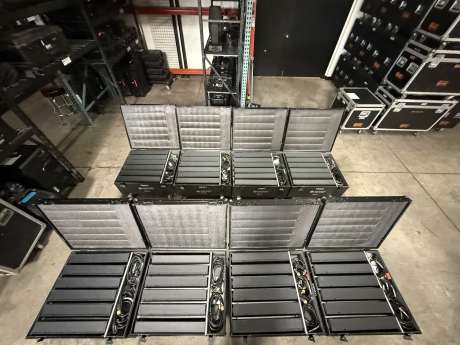

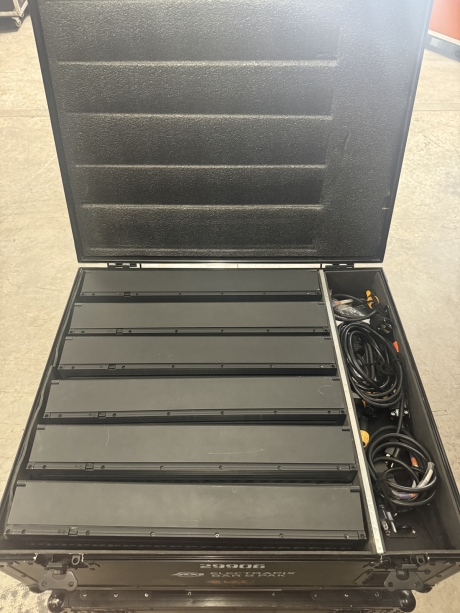

ADJ ElectraPix Bar 8 (Pkg of 6)

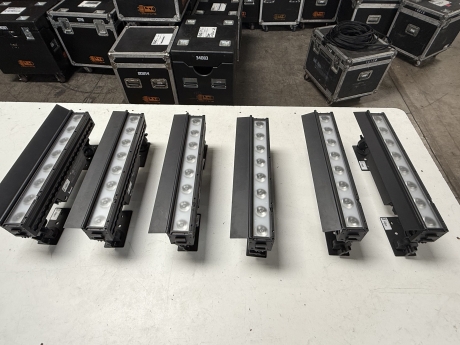

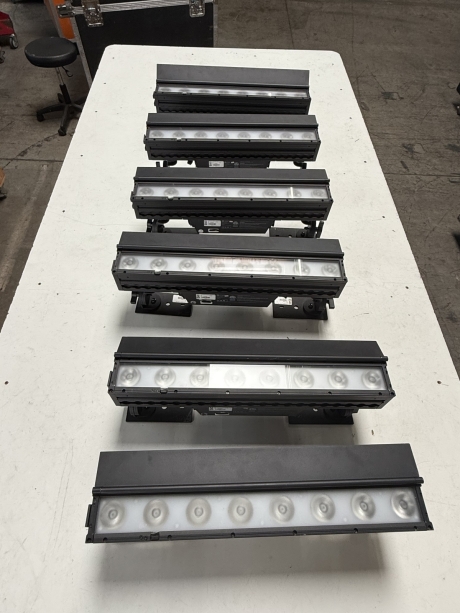

This listing is for a Package of (6) ADJ ElectraPix Bar 8 LED fixtures. They were purchased new in 2024 and are still under manufacturer warranty. These fixtures show signs of wear

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge IP65-rated, battery powered, wireless DMX .5-meter linear fixture designed for pixel-mapped looks, stage and event uplighting, and fast outdoor-capable architectural accents. With eight 20-Watt Hex Color LEDs (RGBAL+UV), it delivers saturated color, UV effects, and cleaner mixed whites without relying on color filters.

Wireless Control and Pixel Mapping

Each bar provides 8-pixel control for chases, gradients, and segmented effects across the fixture, with built-in foreground and background LED programs for quick setup when you need looks without programming from scratch. It also includes the Aria X2 wireless DMX / Management System, supporting cable-free control in temporary installs and mobile rigs where running data lines is impractical.

Battery Operation for Mobile and Temporary Setups

Run the ElectraPix Bar 8 on battery or wall power, with a menu option dedicated to battery operation. The battery is rated for up to 20 hours of operation, making it well-suited for ceremonies, pop-up events, and locations with limited power access. A built-in alarm adds practical security support in shared or unattended environments.

Color, Dimming, and On-Camera Performance

For consistent color across multiple fixtures, the LEDs are color calibrated. Variable white color temperature control (2,300K to 9,900K) helps match warm tungsten looks or cooler daylight tones for photo and video. User-selectable LED refresh rates (900Hz to 25K) can help reduce flicker on camera, while 6 dim modes, 4 dim curves, electronic dimming, and an electronic strobe (0.3Hz to 11Hz) provide flexibility for both smooth fades and punchy effects.

Durable, Outdoor-Capable Build

The IP65 rating supports use in outdoor or weather-exposed environments where non-rated fixtures are a risk, while the .5-meter linear form factor makes it easy to place along walls, stages, truss, or scenic elements for clean lines of light.

• 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• Up to 20 Hour Battery Operation
• Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,300K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Color Calibrated LED's
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming
