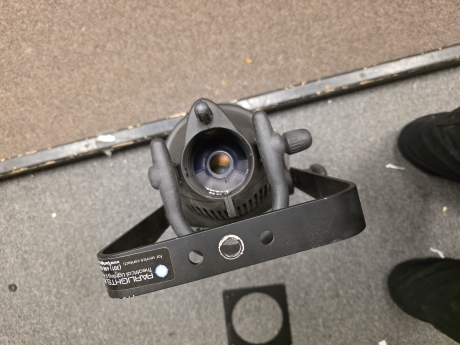

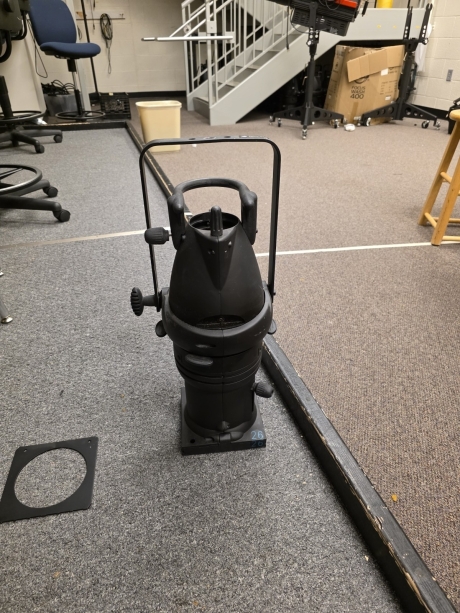

Strand SL Ellipsoidal, 36 Degree
Description
These Strand SL Ellipsoidal, 36 Degree lekos were purchased in 2009 and show signs of wear and tear. They have been well maintained and are in good working condition.
The Strand SL Ellipsoidal, 36 Degree is a compact theatrical ellipsoidal (leko) designed for controlled, repeatable beam shaping in stage, studio, and architectural lighting. It delivers excellent light output with superb distribution and a smooth soft edge while maintaining beam size, making it a practical choice for front light, specials, and long-throw positions where clean shutter cuts and consistent focus matter.
Optics and Beam Control
A precision optical system pairs a high-efficiency dichroic glass reflector with coated, aspheric computer-designed lenses for bright output and crisp imaging. The fixture supports sharp gobo projection plus clean edge and shutter focus, and the wide gate accommodates common accessories such as two gobo holders, a glass gobo holder, a drop-in iris, or a rotating goboholder.
Efficiency and Thermal Management
Optimised for energy efficient, high performance GKV 600W lamps, it consumes significantly less energy while providing more light than most conventional 1000W/1200W spotlights. Coolbeam operation helps extend gobo, shutter, and gel life, which is especially valuable in repertory rigs and installations where accessories stay in the gate for long periods.
Rigging, Setup, and Maintenance
Compact and lightweight construction allows closer hanging in tighter spaces. Smooth 360º body rotation simplifies gobo and shutter positioning, and shutters in three planes enable triangular shutter cuts. Fast, tool-free peak/flat adjustment via a lead screw drive mechanism supports smooth field settings, while quick lamp centering with a positive screw driver lock helps keep alignment stable in transit. For routine upkeep, the fixture provides quick and easy access for reflector and lens cleaning, and a common lamp house with easily interchangeable tubes supports flexible configuration.
Additional Details
- Precision optical system with high light output lamp changes without affecting field setting
- Compact and lightweight, allowing closer hanging in tighter spaces
- High efficiency dichroic glass reflector and coated aspheric computer-designed lenses
- Coolbeam operation for extended gobo, shutter and gel life
- Optimised for energy efficient, high performance GKV 600W lamps;
- Consumes significantly less energy while providing more light than most conventional 1000W/1200W spotlights
- Fast and easy lamp centering with positive screw driver lock so that it won’t move in transit
- Fast positive peak/flat adjustment via lead screw drive mechanism for smooth, tool-free field settings
- Bayonet action lamp changing system for simple
- Smooth 360º body rotation for quick and easy gobo and shutter positioning
- Shutters in three planes for triangular shutter cut
- Highly versatile rigging by combining 360º rotation with two balance positions for yoke
- Large rear handle for easy positioning
- Quick and easy access for reflector and lens cleaning
- Common lamp house with easily interchangeable tubes
- Wide gate will fit 2 gobo holders, including glass gobo holder, drop-in iris or rotating goboholder
- (1) SL Series Ellipsoidal
- (1) 36 Degree Lens Tube

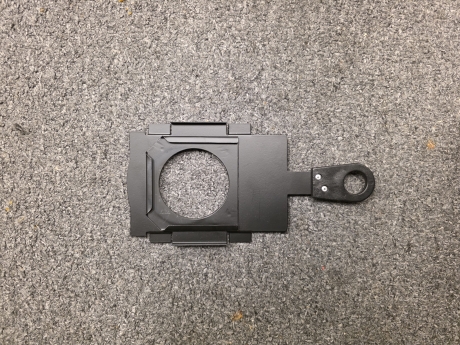

- (1) Gobo Holder

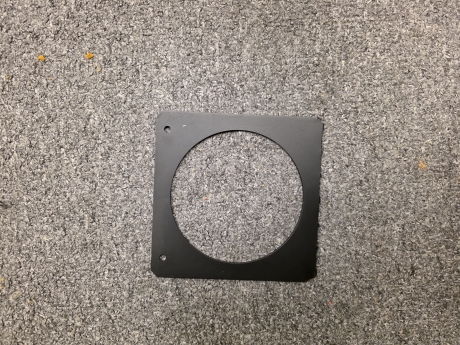

- (1) Gel Frame

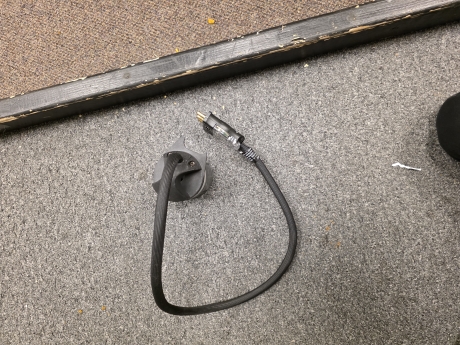

- (1) Lamp Housing with Stage Pin Connector
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Manchester, MD, USA
