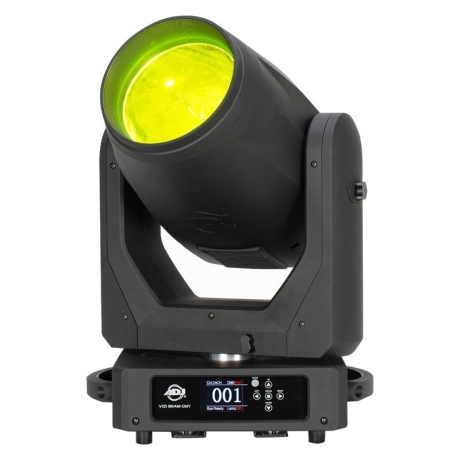

ADJ Vizi Beam CMY

These units are ADJ B-Stock and come with a 90 day manufacturer warranty.  All fixtures are cleaned and tested before leaving the building.

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a moving head beam fixture built for crisp aerial looks, tight stage beams, and fast, repeatable cues in clubs, tours, houses of worship, and event production. Powered by a 310W Osram Sirius HRI discharge lamp (6,000-hour lifespan), it delivers a precise 2-degree beam angle and uses high speed, 3-phase pan/tilt motors for responsive movement and accurate positioning.

Color, gobo, and beam shaping for show-ready looks

For color work, the fixture combines CMY color mixing with a 14-color dichroic wheel (plus white), including CTO (3200K), CTB (9000K), and UV filters. The indexable color wheel supports split colors, and a separate multi-color effect helps build dynamic color chases without complex programming.

Texture and beam control come from a GOBO wheel with 17 static patterns (including four beam reducers), plus a GOBO shake effect for added motion. Two rotating prisms (16-facet circular and 6-facet linear) can be used individually or overlaid for layered beam effects, and the frost filter expands the fixture from a tight beam into softer wash-style looks when the show calls for wider coverage.

Control options and professional connectivity

The Vizi Beam CMY supports DMX512 and RDM, with 20- or 24-channel DMX modes, along with manual operation via the color LCD display and 4-button menu. On-board wireless DMX reduces cable runs in challenging rigs, and OTA, wireless firmware updates help keep fixtures current without pulling them from installation.

Focus, dimming, and rigging-friendly design

Motorized focus with 16-bit fine focus makes it easier to keep GOBOs and aerial effects sharp across varying throw distances. Smooth 0-100% dimming and multiple strobe speeds support everything from subtle fades to aggressive hits. For transport and maintenance, pan/tilt locks add stability, while outdoor-rated locking power connections allow power daisy-chaining and 5-pin DMX in/out supports data linking up to 32 fixtures.

Electrical and physical details

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 410W (@120V), 390W (@230V)
• Fuse protected: 6.5A
• Pan: 540 degrees (plus 16-bit fine pan), Tilt: 270 degrees (plus 16-bit fine tilt)
• Dimensions: 9.8 in (L) x 14.3 in (W) x 17.9 in (H) (248 x 364 x 454.8mm)
• Weight: 38.5 lbs (17.5 kg)
• CE approved
