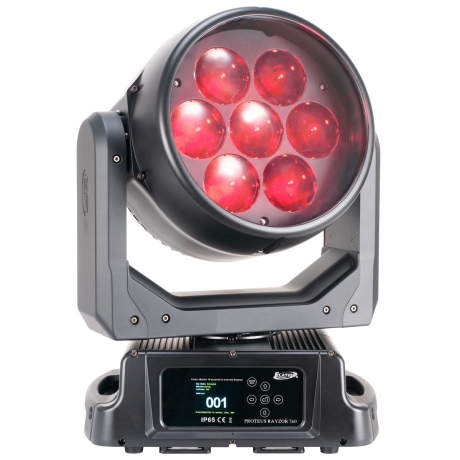

Elation Proteus Rayzor 760

These units are Elation B-Stock and come with a 1 year manufacturer warranty.  All fixtures are cleaned and tested before leaving the building.

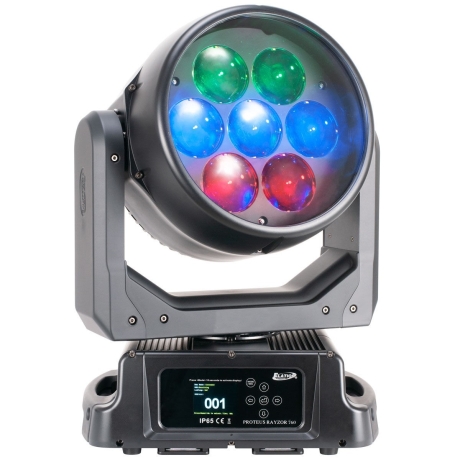

The Elation Proteus Rayzor 760 is a compact yet extremely powerful IP65 rated wash effects fixture featuring Elation’s unique SparkLED system and fast continuous pan and tilt motion. With its wide zoom range from 5 to 77 degrees, it delivers intense, well-defined mid-air beams at over 7,200 lumens, along with exceptionally wide and even wash coverage, making it a flexible choice for concerts, events, and installed rigs, including outdoor setups and demanding environments.

SparkLED Lens Effects for Added Depth

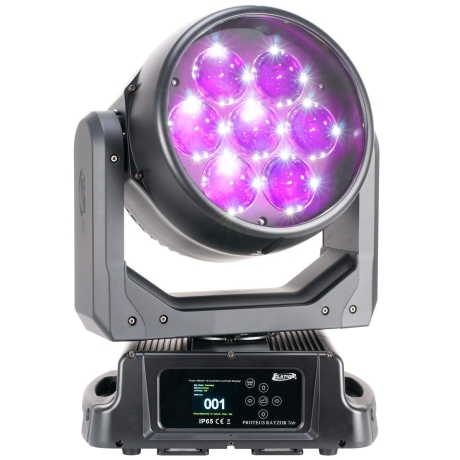

Driven by 7 independently controlled 60W OSRAM RGBW LEDs (420W total), the Proteus Rayzor 760 provides a bold beam and saturated wash output that reads clearly on stage and camera. The oversized front lenses create a large, bright surface that is enhanced by exclusive, patent-pending SparkLED technology. SparkLEDs consist of 28 individual white LEDs placed inside the lens itself, creating internal lens illumination that adds depth and visual impact beyond standard wash looks. SparkLEDs can be controlled from the lighting console with pixel control or driven by built-in FX patterns for fast, repeatable looks.

Beam-to-Wash Zoom and 360° Movement

The Proteus Rayzor 760 transitions from tight beam effects to wide, smooth washes using a motorized zoom (5° to 77°). For dynamic aerial looks and positioning flexibility, it offers precise 360° continuous pan and tilt rotation with variable speed control, from slow movement for mood to extremely fast movement effects. Combining the powerful RGBW LED output, SparkLED pixel effects, and continuous rotation gives designers a broad palette, from mid-air beams and stage washes to subtle texture and lens-forward effects for TV and broadcast environments.

Control, Networking, and Professional Integration

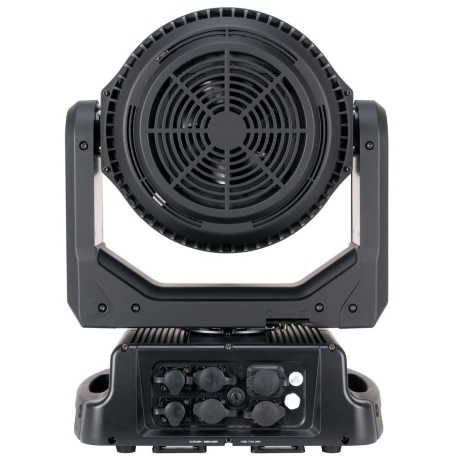

Built for professional lighting systems, the fixture supports DMX and RDM with 3 DMX channel modes (25 / 52 / 80 channels), and includes an adjustable refresh rate (900 to 25,000 Hz) to help optimize performance for camera use. It also provides IP65-rated connectivity for 5-pin XLR DMX in/out and RJ45 Ethernet in/out for Art-Net and sACN, along with a full-color, 180° reversible LCD menu display and a 6-button touch panel for straightforward configuration.

Key Specs Buyers Compare

• Output: 7,200 lumens total, CRI 80
• Light engines: 7x 60W OSRAM RGBW LEDs with pixel control, 28x 2W SparkLED effect pixels
• Zoom range: 5° to 77° (beam angle 5.4° to 56.4°, field angle 8.1° to 74°)

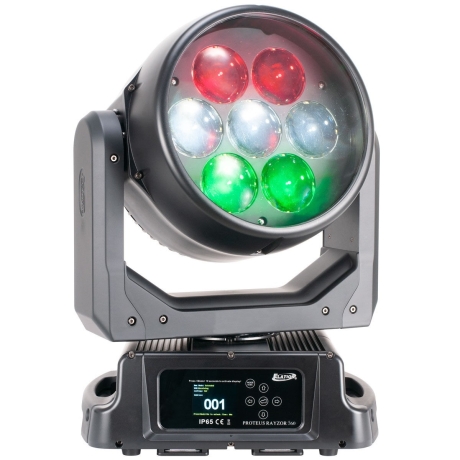

• Color tools: RGBW color mixing, linear CCT presets (2700K to 8000K), color presets and macros
• Performance: electronic strobe, 16-bit dimming, variable dimming curves
• Movement: pan angle 540°/630°, tilt angle 270°/360°, plus 360° continuous pan/tilt movement
• Rated life: 50,000 hour average LED life
• Physical: 14.31 x 10.24 x 19.43 in, 41.0 lb (18.6 kg), center-to-center 16.6 in
