Clay Paky A.leda B-EYE K20

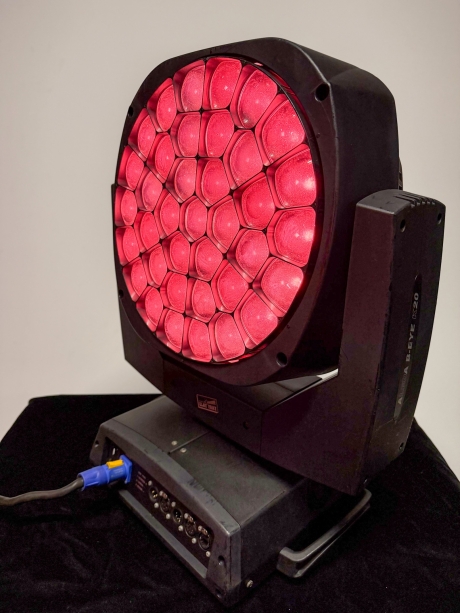

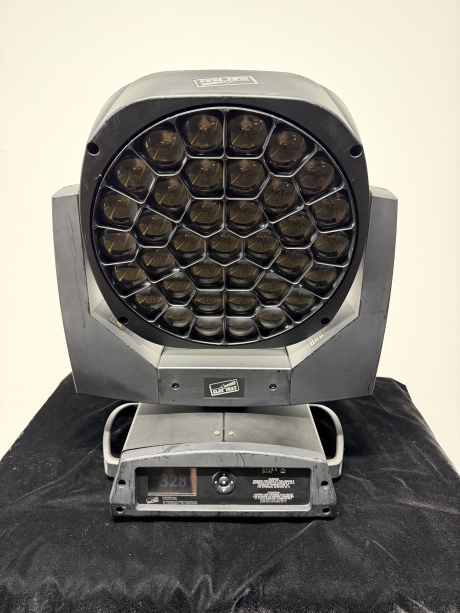

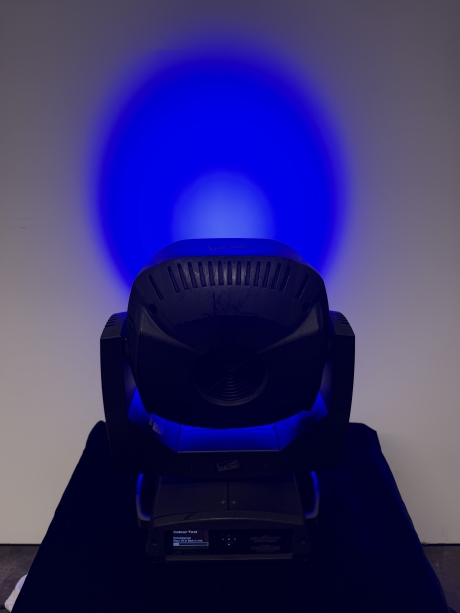

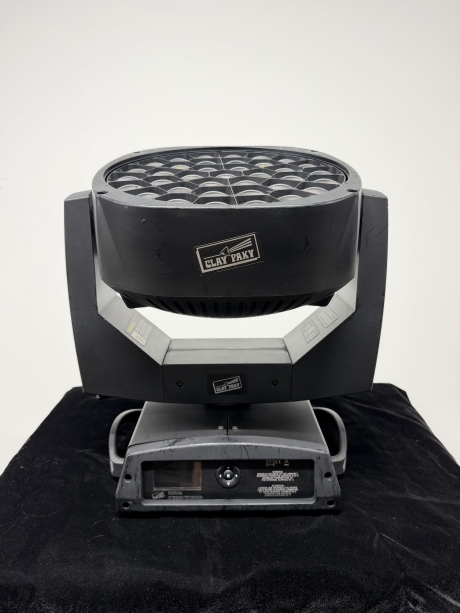

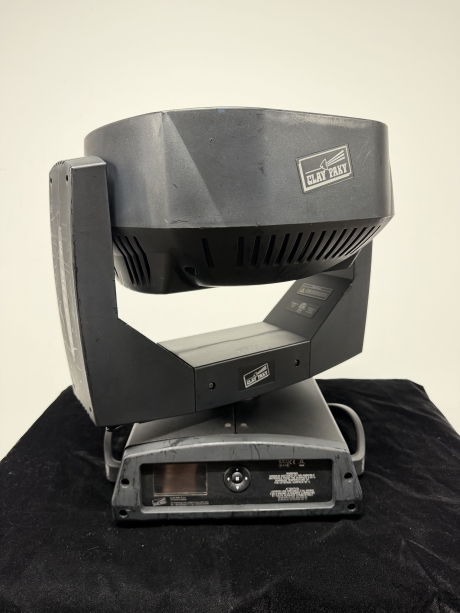

These Clay Paky A.leda B-EYE K20 LED moving lights show signs of wear but are in good working condition.

The Clay Paky A.leda B-EYE K20 is an RGBW LED wash, beam, and effects fixture designed to deliver vivid color and consistent coverage at virtually any throw distance. Its wide 4° to 60° zoom makes it equally at home in low-ceiling venues such as small theatres and TV studios, as well as in arenas and large environments where a tight zoom helps maintain punch and definition.

Zoom That Shifts from Wash to Beam

The B-EYE is able to wash surfaces with colors at any distance, making the most of its light source. The zoom ranges from 4° to 60° and it is therefore suitable both for environments with low ceilings (small theatres and TV studios, for example), where large angles are extremely useful, and for shows in arenas or large environments, where a tight zoom is perfect.

When the B-EYE beam is zoomed down to 4°, the "wash" light turns into a "beam" fixture. The B-EYE therefore becomes a surprising mid-air parallel effect light, capable of generating a pulsating beam of micro-rays, which may be controlled individually, each with its own colors and shades. All the parameters of each LED can be completely controlled.

Pixel-Level Control and Dynamic Pattern Design

With 37 RGBW LEDs (15W nominal per LED) and individual parameter control per LED, the B-EYE K20 supports detailed pixel mapping and repeatable looks, from smooth, even wash to complex multi-beam graphics. In wash mode, beam edge softening control helps refine the field for camera or stage use, while the invisible front grid keeps the output clean and unobstructed.

Rotating Lens Effects and Color Temperature Emulation

Lastly, the B-EYE K20 introduces a completely new feature: the front lens may be rotated to create lots of small bright compositions, which may be opened and closed like petals. By adding colors and dynamic graphics, the B-EYE generates never-seen-before graphic light effects.

For white light applications, it includes CT emulation from 2500 to 8000K, RGB auto-tuning to lamp CT emulation, and tungsten lamp emulation, making it easier to match other fixtures on a rig or transition between saturated color and believable white light.

Control and Integration

The fixture supports Art-Net and RDM for streamlined addressing, monitoring, and integration into modern lighting networks and consoles.
