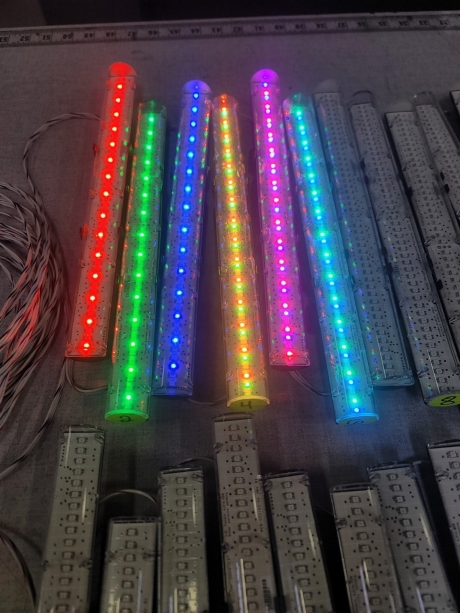

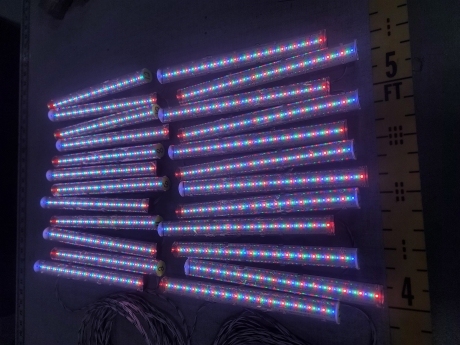

Color Kinetics iColor Cove NXT (Pkg of 24)
Description
This listing is for a Package of (24) Color Kinetics iColor Cove NXT units. They show signs of wear but are in good working condition.
Color Kinetics iColor Cove NXT brings digital, color-changing RGB LED light and lighting effects to alcoves, under-shelf/task areas, accent details, and other tight spaces. With a wide, symmetrical 120° x 120° beam angle, iColor Cove NXT is especially well-suited for backlighting where you want smooth coverage and a soft-edge strip of light rather than a harsh hotspot.
Designed for smooth, modular cove and backlighting

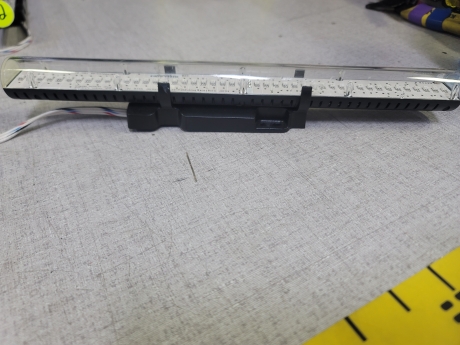

iColor Cove NXT is modular in design and available in fixed lengths of six (6) and twelve (12) inches. Each fixture is housed in a low-profile, vented, two-piece molded plastic housing and snaps into a one-piece mounting bracket. Fixed position mounting brackets are indexed to lock fixtures into place for consistent alignment across multiple units, and optional adjustable position brackets allow for easy rotation when aiming is required.
Control and addressing (Color Kinetics or DMX512)
Each length of iColor Cove NXT can be controlled by a Color Kinetics controller or a third-party DMX512 controller. Each fixture comes pre-addressed to light number one. With a Color Kinetics controller, simple effects such as fixed color and color wash require no additional addressing. For other effects across multiple lights, including Chasing Rainbow or Color Sweep, fixtures may be addressed using Serialized Addressing Software (SAS) or Zapi 1.5.
Power and data integration
To connect power and data, each fixture includes a three-pin header that attaches to a master cable, helping simplify runs with curves or more complex geometries. Each master cable is designed to be hardwired to a PDS-150e or PDS-60 24V, which supplies power and data to all connected lights.
Optics and performance highlights
- Optics: Clear PMMA (acrylic)
- LEDs: 24 total (8 Red, 8 Green, 8 Blue), high-brightness surface-mount LEDs
- Color control: 16.7 million (24-bit) additive RGB colors with continuously variable intensity output range
- CCT: Adjustable 1,000–10,000K
- Distribution: Symmetric direct illumination
- Voltage requirement: 24VDC
- Max power consumption: 6.2 W (12-inch)
Additional Details
| Ships From: | Milford, CT, USA |
| Manufacturer: | Philips/Color Kinetics |
| Condition: | Good |
| Item #: | 61996 | Brokered |
| Tags: | Leds, Packages, Strip lights, Led strips, Led wash, Other |
- Optics: Clear PMMA (acrylic)
- Source: 24 LEDs (8 Red, 8 Green, 8 Blue)
- Beam Angle: 120° x 120° (at 50% of peak illuminance)
- Distribution: Symmetric direct illumination
- CCT: Adjustable 1,000–10,000K
- Color Range: 16.7 million (24-bit) additive RGB colors; continuously variable intensity output range
- Source: High brightness surface mount colored LEDs
- Beam Angle: 120° x 120°
- Housing: Two-piece vented plastic
- Voltage Requirement: 24VDC
- Power Consumption Maximum: 6.2 Watts (12-inch)
Product Specs

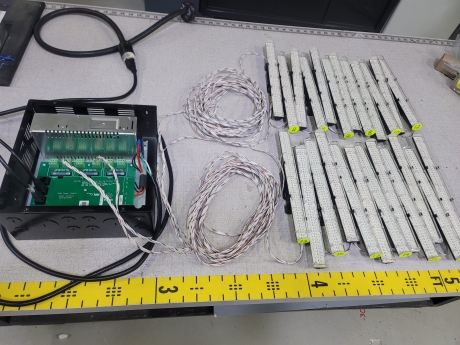

- (24) iColor Cove NXT

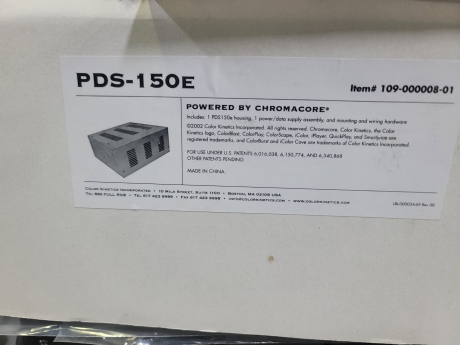

- (1) PDS-150E Power Supply
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Milford, CT, USA
