City Theatrical SHoW Baby 5
Description
These City Theatrical SHoW Baby 5 Wireless DMX units show minor wear and are in good working condition.
City Theatrical SHoW DMX SHoW Baby 5 is a plug-and-play wireless DMX and RDM unit designed for fast, reliable DMX distribution without running data cable. Built on SHoW DMX Neo technology, it is a practical fit for venues, touring rigs, and temporary installs that need professional wireless performance without the complexity of a larger wireless system.
Transmitter or Receiver, Automatically
The SHoW DMX SHoW Baby 5 represents a breakthrough in plug-and-play wireless DMX and RDM transmission, a single unit that can be used either as a wireless DMX Transmitter or Receiver. Set-up couldn't be simpler with SHoW DMX SHoW Baby's instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don't.
When a DMX cable is plugged into the SHoW DMX SHoW Baby's DMX Input, the SHoW DMX SHoW Baby senses the connection and configures itself as a transmitter. If no cable is connected to the DMX Input, the SHoW Baby configures itself as a Receiver, making it easy to deploy as needed on a truss, catwalk, or backstage position.
Wireless DMX + RDM Performance
Using a 2.4GHz Frequency Hopping Spread Spectrum (FHSS) radio, SHoW Baby 5 can wirelessly broadcast and receive a full universe of DMX (512 slots) with robust DMX512 and RDM data transmission. Extremely low 7mS latency helps keep timing tight for responsive lighting control.
It offers 5 possible SHoW IDs (including the original SHoW Baby 201) to help separate systems in multi-room or multi-rig environments, and it maintains full compatibility with previous SHoW Babys. RDM proxy and responder functions support remote device management workflows where RDM is used.
Hardware, Indicators, and Compliance
- DMX IN and OUT via Neutrik 5P XLR connectors for secure touring-grade connections
- 72mW ETSI broadcast power for dependable operation in supported regions
- LED indicators for Tx/Rx mode, data present (color indicates SHoW ID), and RF signal strength (4 LEDs)
- NEMA 1 steel and ABS enclosure with an aluminum mounting bracket for use with C-clamps or similar hanging hardware
- RoHS compliant, CE certified, and FCC certified
Additional Details
| Ships From: | Valencia, CA, USA |
| Manufacturer: | City Theatrical |
| Condition: | Good |
| Model: | 5702 |
| Item #: | 61267 | Brokered |
| Tags: | Splitters & wireless, Wireless dmx |
- SHoW DMX Neo 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
- Wirelessly broadcast and receive a full Universe (512 slots) of DMX
- Robust wireless DMX512 and RDM data transmission
- 5 Possible SHoW IDs including the original SHoW Baby 201
- Full compatibility with previous SHoW Babys
- Extremely low 7mS latency
- RDM proxy and responder functions
- Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don't!
- 72mW ETSI broadcast power
- Mounting Bracket for installation with C-Clamps or similar hanging hardware
- Included CL2 12VDC Power Supply with international plug set
- Included 2dBi Omni-directional Antenna
- Neutrik 5P XLR Connectors for DMX IN and DMX OUT
- NEMA 1 Steel and ABS enclosure
- Aluminum Mounting Bracket for " Hardware for C-Clamp or other hanging hardware

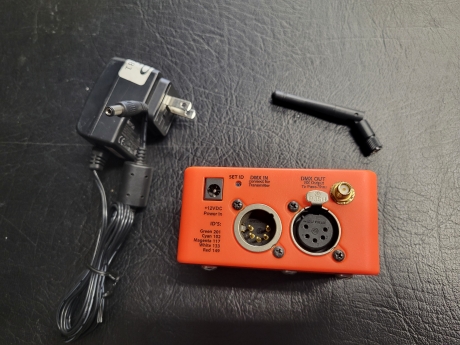

- DMX IN and OUT via Neutrik 5P XLRs
- LED indicators:
- Tx (set as transmitter)
- Rx (set as receiver)
- Data (data present): color indicates SHoW ID
- RF Signal Strength (4 LEDS) Low to High
- RoHS Compliant
- CE Certified
- FCC Certified
- (1) Show Baby 5
- (1) 2dBi Omni-directional Antenna
- (1) CL2 Power Supply
