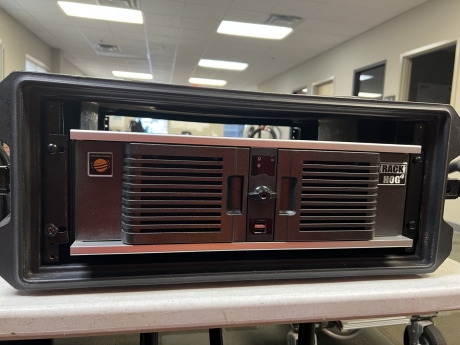

High End Systems Rack Hog 4 w/ Case

This High End Systems Rack Hog 4 comes mounted in a case. They show signs of wear but are in good working condition.

Rack Hog 4 has all the power of a Hog 4 console in a 3U 19-inch rack mount unit. Designed for applications where permanent hardware interfaces are not necessary, the Rack Hog 4 is well-suited for fixed-installation environments such as cruise ships, theme parks, and architectural lighting features. It can also act as a backup to any Hog 4 family console, providing a reliable way to keep a show running if your primary control surface is unavailable.

Flexible Control for Installs and Backup Systems

For compact control rooms and equipment racks, Rack Hog 4 delivers the Hog 4 OS workflow in a space-saving format while still supporting an external monitor or touchscreen via DVI-I or VGA. Connect a Hoglet 4, add a touchscreen, and you have a stable control system ready to take on programming and playback duties. The platform is also designed to scale, with support for Wings, Widgets, and DMX Processors as your rig grows.

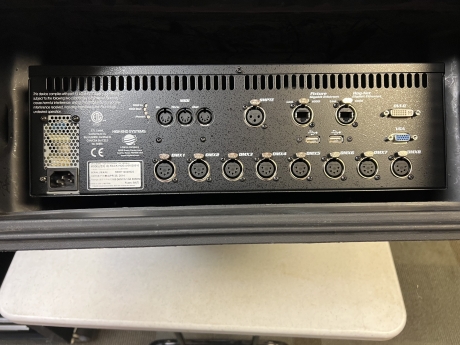

Connectivity and Output Options

• Robust Hog 4 OS operating system for consistent show control
• One external DVI-I or VGA monitor/touchscreen supported
• 8,192 output channels, expandable with DP8K processors
• 8 Neutrik XLR-5 DMX outputs for direct DMX distribution
• sACN and Art-Net for network-based lighting control
• MIDI In, Out and Thru for integrating show control and timecode workflows
• Dual EtherCon connections for HogNet and FixtureNet
