High End Systems Rack Hog 4

This High End Systems Rack Hog 4 was purchased new and never used. It has minor wear and is in like new condition. It will ship in the original packaging.

The High End Systems Rack Hog 4 delivers the power of a Hog 4 console in a compact 3U 19-inch rack mount form factor for permanent installs and streamlined control rooms where a full, built-in user interface is not required. It is well-suited for fixed-installation environments such as cruise ships, theme parks, and architectural lighting features, and it can also serve as a backup controller for any Hog 4 family console.

Built for Permanent Installs and Show Backup

Designed for applications where permanent hardware interfaces are not necessary, Rack Hog 4 supports an external display workflow and can be expanded as your system grows. Connect a Hoglet 4, add a touchscreen, and you have a stable control surface ready to run a show with the familiar Hog 4 OS experience. For larger rigs and distributed systems, it is fully expandable using Wings, Widgets, and DMX Processors.

Key Control and Networking Capabilities

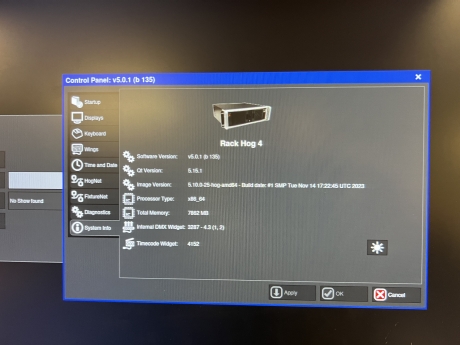

• Robust Hog 4 OS operating system
• One external DVI-I or VGA monitor/touchscreen supported
• 8,192 output channels, expandable with DP8K processors

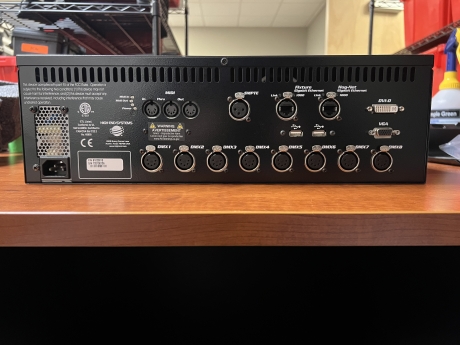

• 8 Neutrik XLR-5 DMX outputs for direct fixture connectivity
• sACN and Art-Net for network-based lighting distribution
• MIDI In, Out and Thru for show control and synchronization
• Dual EtherCon connections for HogNet and FixtureNet
