Portman P3 PIX3L (Pkg of 6)
Description

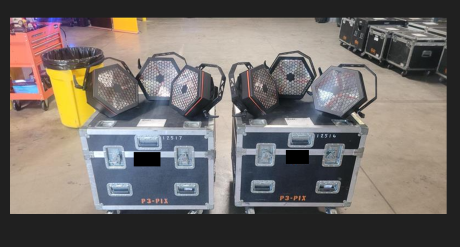

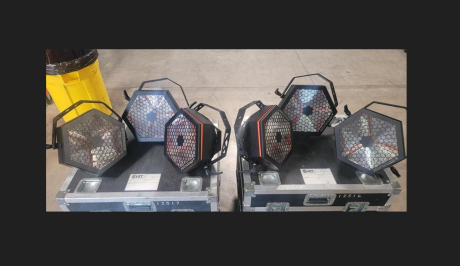

This listing is for a Package of (6) Portman P3 PIX3L fixtures. They show minor wear and are in like new condition. Included in this package are:
- (6) P3 PIX3L
- (6) Power Cable

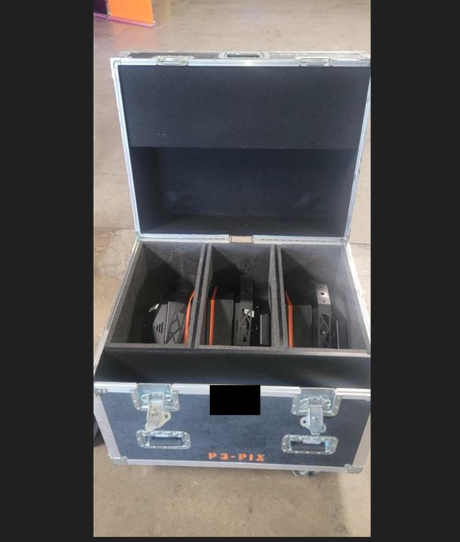

- (2) 3-Unit Road Case
Small but crazy, they said. The Portman P3 PIX3L is a compact, three-channel halogen fixture widely used for scenography and as a powerful blinder across all parts of stages. It can also be used for lighting artists, with a warm, tungsten-style output that ranges from 1,600 to 2,900K depending on dimmer level.
Control and Rigging
With 3 DMX channels, built-in dimmers and electronics, and 5-pin XLR in/out (Neutrik), the P3 PIX3L integrates easily into standard DMX lighting rigs. It supports RDM and offers WDMX as an optional module for wireless control setups. For flexible mounting, it can be installed on a tripod or hung from clamps as part of a truss or scenic build.
Lamp Configuration and Power
Each fixture uses 3 x 230W halogen lamps (R7s 118mm OSRAM Haloline PRO 230V, 230W, high efficiency) for a bold, filament look on camera and on stage. Input voltage is 230V 50Hz/60Hz, with a maximum power consumption of 690W per fixture. Power connection is via Neutrik PowerCon TRUE1 for secure, tour-ready power distribution.
Physical Specs
- Dimensions: 45 x 40 x 20 cm (17.7 x 15.7 x 7.9 in)
- Weight: 4.5 kg (9.9 lbs)
Additional Details
- 3 DMX channels
- 3 x 230W halogen lamps
- Built in dimmers and electonics
- 5-PIN XLR connectors
- RDM and WDMX* (*as an optional module)
- Can be easily installed on any tripod or hang on any clamp
- Input voltage: 230V 50Hz/60Hz
- Power consumption: max 690W
- Power connector: Neutrik PowerCon TRUE1
- Control connector: Neutrik 5 PIN XLR (both: in & out)
- Light sources: 3 x halogen, R7s 118mm OSRAM Haloline PRO 230V, 230 W (high efficiency)
- Color temperature: 1,600 - 2,900K
- Dimensions: 45 x 40 x 20 cm (17.7 x 15.7 x 7.9 in)
- Weight: 4.5 kg (9.9 lbs)
- (6) P3 PIX3L
- (6) Power Cable
- (2) 3-Unit Road Case
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Phoenix, AZ, USA
