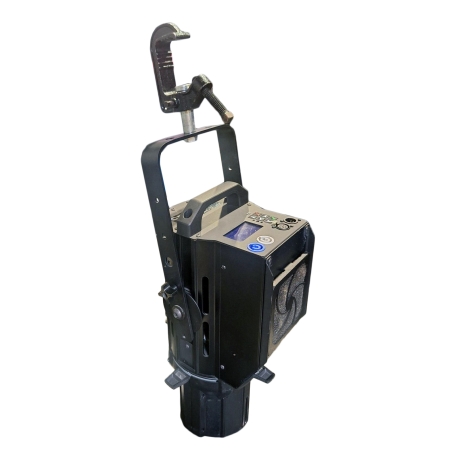

Prism Projection RevEAL Profile Junior EC, 26 Degree, Variable White + Color

The Prism Projection RevEAL Profile Junior EC is a color-changing, enhanced white (CCT) 93 CRI LED profile spot designed for theatrical, broadcast, and event lighting where accurate skin tones, clean whites, and repeatable color are essential. With an 8,000-lumen output and a tunable range from 2800K to 6500K, it delivers everything from warm tungsten-like looks to crisp daylight, while also providing a wide color-mixing gamut for saturated and subtle tones.

These units come with a 26 degree lens tube. They may show signs of heavy wear but are in good working condition.

Color Accuracy and Repeatability

The RevEAL Profile Junior EC luminaire pairs high output with high fidelity, featuring 94 CRI and Prism’s TrueSource integrated optical feedback for specifiable and repeatable color temperature. In practice, that means you can match looks from cue to cue and fixture to fixture with more consistency, which is especially valuable in venues running mixed rigs or maintaining a show across multiple spaces.

Beam Control for Conventional-Ellipsoidal Workflows

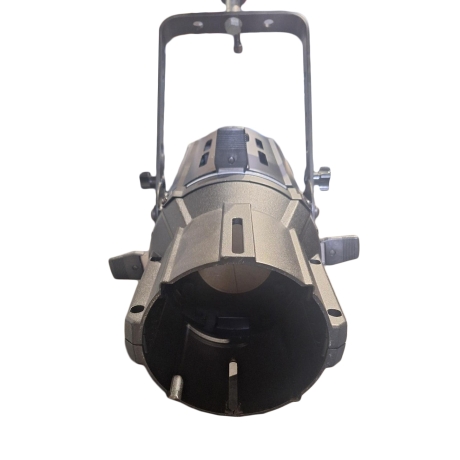

Built in a form factor similar in size and weight to conventional tungsten-source ellipsoidals (approximately 20 lbs), the Profile Junior provides adjustable focus from hard edge to soft edge with a pure blended beam. It includes four shutters on a tri-plane for clean cuts and shaping, plus support for a B-sized GOBO, making it well suited for logos, breakup patterns, and textured specials.

Lens Tube and System Compatibility

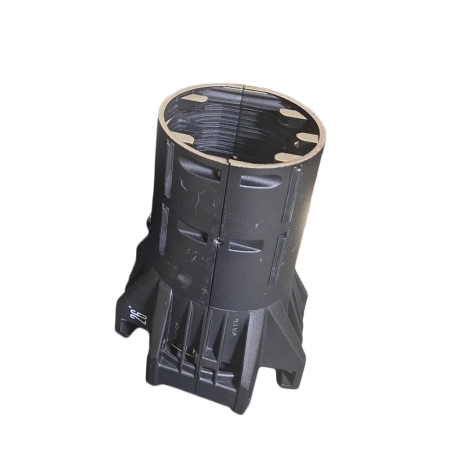

This fixture ships with a 26 degree lens tube and also supports interchangeable lenses compatible with standard-definition ETC Source Four lens tubes. For teams with existing inventory, the body-only compatibility can help keep lens options flexible and reduce the need to replace an entire lens library.

Control and Power

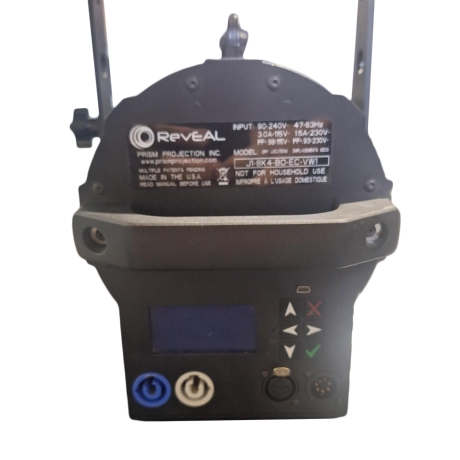

For integration into modern control systems, the fixture supports DMX, Art-Net, and local control, plus PowerNET. Universal AC input (85-265 VAC) makes it adaptable for touring and permanent installs. Power draw is rated at 242 watts in Full Mode and 121 watts in Eco Mode, with 3 watts in standby (quiescent) power.
