Prism Projection RevEAL Studio.3 EC Studio Fresnel, Variable White

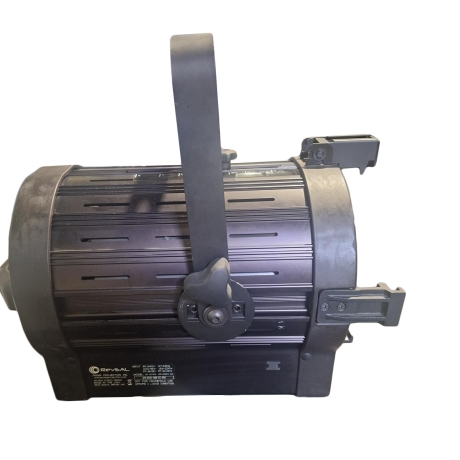

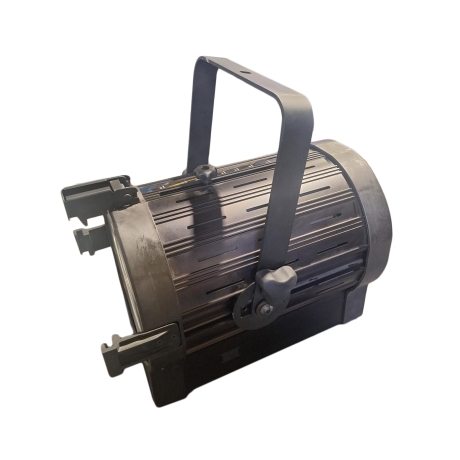

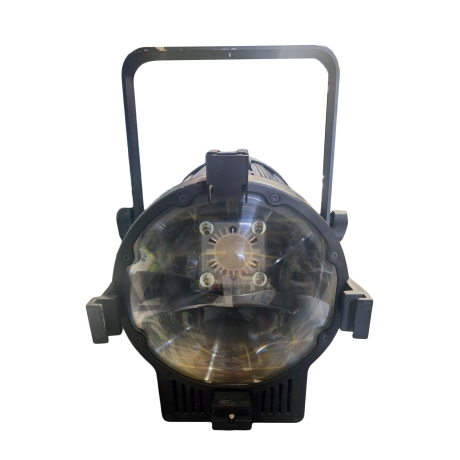

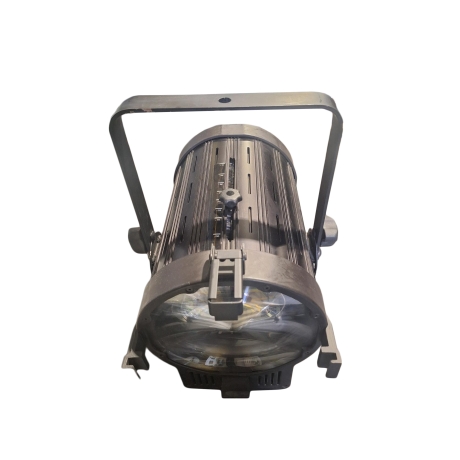

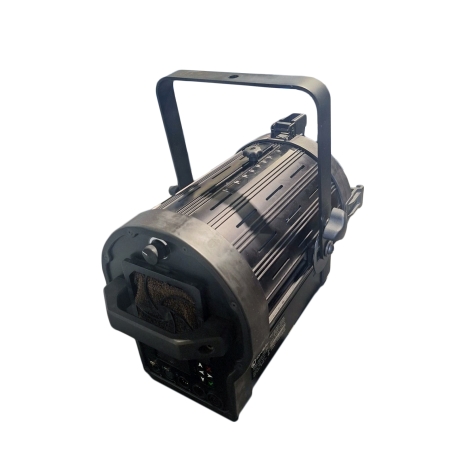

The Prism Projection RevEAL Studio.3 EC Studio Fresnel, Variable White is a professional LED Fresnel lighting instrument designed for studio and location work where accurate skin tones and consistent output matter. With a variable correlated color temperature range of 2700-6000K, it lets you match practicals, daylight, or mixed-light environments quickly while maintaining smooth, even field quality through its projection optics.

These fixtures show signs of heavy wear but are in good working condition.

Color Accuracy and Tunable White Control

The RevEAL Studio.3 E-Series is a professional 93 CRI Enhanced Color LED fresnel lighting instrument with high lumen output. The Studio.3 EC offers superior color rendition guaranteed by TrueSource color management technology. For on-set color matching and camera balancing, the fixture supports variable CCT plus expanded color control, including green-magenta correction to help compensate for fluorescent spill or other tint shifts.

Beam Control and Dimming for Studio and Set

Adjust the beam from 8-90 degrees to move from a tighter, more directed look to a broader wash without changing fixtures. Smooth, continuous 0-100% dimming supports subtle level changes for interviews, key and fill work, and cue-based adjustments without distracting jumps in output. CCT and intensity can be set locally at the fixture or controlled remotely for faster tweaks when the unit is rigged overhead or placed out of reach.

Efficiency, Longevity, and Physical Specs

The solid-state LED engine is designed for long service life, rated at 50,000 hours to 70% lumen maintenance. The fixture measures 12.6" x 11.3" x 16.3" and weighs 28 lbs, making it a substantial, studio-ready Fresnel that can stand up to regular production handling.
