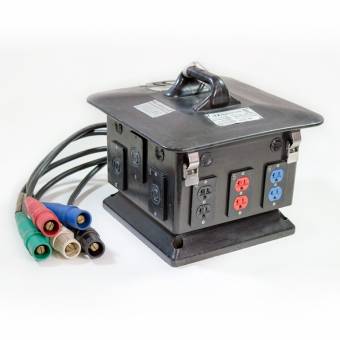

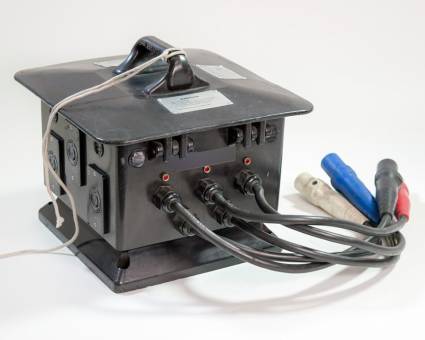

Lex 100A 3-Phase Distro, L6-20
Description
These units may show signs of heavy wear but are in good working condition.
These Lex power distribution boxes are durable, safe, long lasting and deliver power where and when it is needed. The Lex 100A 3-Phase Distro, L6-20 is built to take a 100A 208Y/120V 60Hz 3-phase feeder and break it out into multiple protected branch circuits, making it a practical choice for production, event, and temporary power setups.
Power In, Multiple Protected Outputs
Designed for straightforward tie-in and distribution, the unit accepts a 100 Amp (5) wire male Cam tails input and provides both 120/208V and 120V receptacle options for common loads. Outputs include (6) L6-20 20A 120/208V locking receptacles plus (3) 20A-125V duplex receptacles, helping you power a mix of equipment from a single distro point.

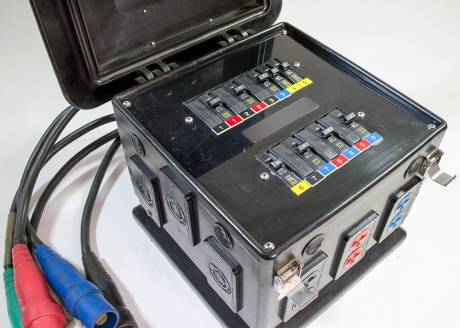

Branch Circuit Breaker Protection
Integrated overcurrent protection is provided via branch-rated breakers, including (6) 20 Amp double pole and (3) 20 Amp single pole breakers. This layout supports safer distribution and simpler troubleshooting when powering multiple circuits.
Form Factor for Mobile and Temporary Setups
The enclosure measures 14.5”L x 14.5”W x 14”H and weighs 31 lbs., balancing capacity with portability for carts, stage wings, shop floors, or jobsite power stations.
Additional Details
- Rating: 100A 208Y/120V 60hz 3ph
- Input: 100 Amp (5) Wire Male Cam Tails
- Output: (6) L6-20 20A 120/208V locking receptacles, (3) 20A-125V Duplex receptacles
- Overcurrent Protection: (6) 20 Amp Double Pole, (3) 20 Amp Single Pole Branch Circuit Rated Breakers
- Dimensions: 14.5”L x 14.5”W x 14”H
- Weight: 31 lbs.
- (1) 100A 3-Phase Distro, L6-20
