Elation PALADIN (Pkg of 4)

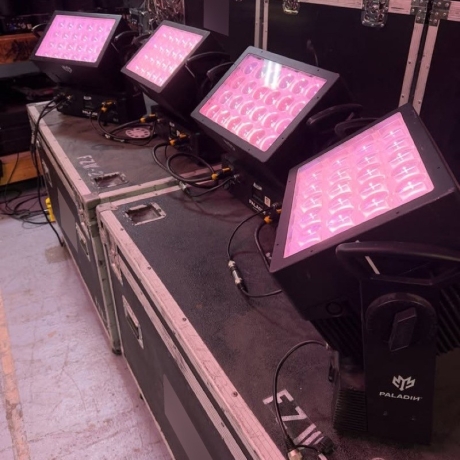

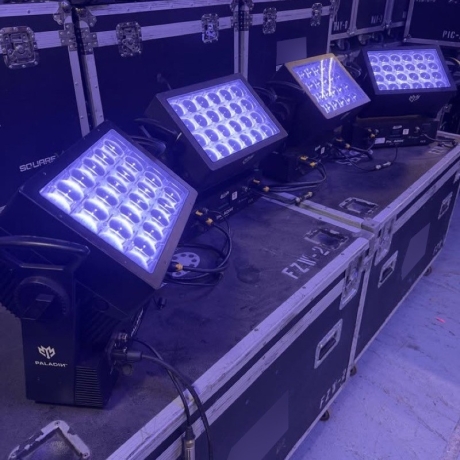

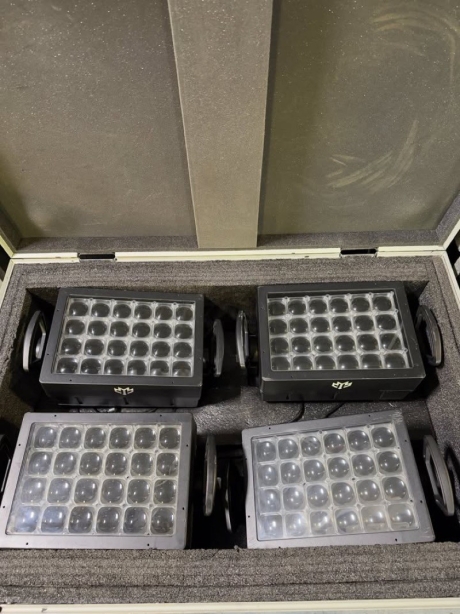

This listing is for a Package of (4) Elation PALADIN LED fixtures. They show signs of wear but are in good working condition.

PALADIN is an IP65 rated strobe wash blinder luminaire with motorized zoom, designed for high-output looks on stages and outdoor environments where weather resistance matters. It uses (24) high power 40W 4-in-1 RGBW LEDs and offers pixel zone control for segmented effects, plus 64 color presets and 15 unique color macros for fast programming.

Output, Zoom, and Effects Control

Use the 6° to 32° motorized zoom to go from a tight punch to a wider wash without swapping lenses. For brightness reference, output is rated at 79,252 LUX 7,362 FC @9.8’ (2m) (6° Full ON) and 6,848 LUX 636 FC @9.8’ (2m) (32° Full ON). Electronic strobe and 16-bit dimming with variable dimming curve modes support smooth fades as well as aggressive strobe and blinder hits.

DMX/RDM Integration and Onboard Setup

PALADIN supports DMX and RDM (Remote Device Management) protocol support, with multiple DMX channel modes (33 total channels) to match simpler setups or more detailed pixel control. Adjustments can be made from the 4 button control panel and LCD menu display, and it includes adjustable refresh rate frequency and GAMMA for camera-friendly performance (flicker free for TV and FILM).

Rugged Build and Touring-Ready Connectivity

The rugged die-cast aluminum exterior and IP rated 5pin DMX in/out connections are built for demanding production use. Power is handled via powerCON TRUE1 in, and the multi-voltage universal auto switching power supply (100-240v) simplifies deployment across venues. Manual 210° tilt movement allows flexible aiming when rigged or floor-mounted.

Physical Specifications

• Length: 16.4” (478mm)
• Width: 11.2” (233mm)
• Vertical Height: 16.0” (407.5mm)
• Weight: 46.0 lbs. (20.9 kg)
