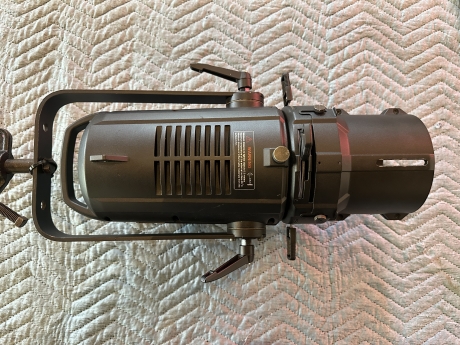

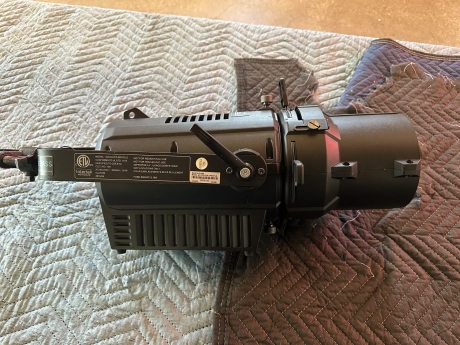

Elation Colour 5 Profile
Description
This listing is for Elation Colour 5 Profile LED leko bodies only. They show signs of wear but are in good working condition.
The Elation COLOUR 5 Profile ellipsoidal fixture is built for precise, repeatable beam shaping in theatre, broadcast, and live production. It features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine delivering 4,100 total lumens with >94CRI for accurate, flattering color rendering on skin tones and scenic elements. For flexible field coverage, it accepts 19°, 26°, 36°, and 50° interchangeable lens options (sold separately).
Optics and Beam Control
Designed for clean cuts and controlled highlights, the COLOUR 5 Profile includes (4) blade manual framing shutters plus manual focus, making it a strong choice for shaping light on stage architecture, signage, set pieces, or talent. It supports B size metal HT transparency gobos, allowing you to add patterns, breakup, and logos while maintaining crisp projection.
Color Quality for Camera and Stage
With high CRI performance and flicker free operation for TV and FILM, this fixture integrates smoothly into camera workflows where consistent output and stable dimming matter. A DMX controlled electronic strobe, dimming, and selectable dimming curve modes help match fades and cue timing to your venue or production style.
Control, Connectivity, and Power

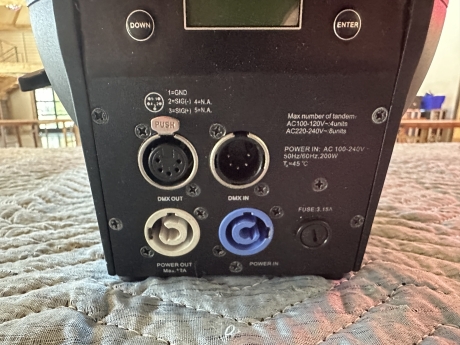

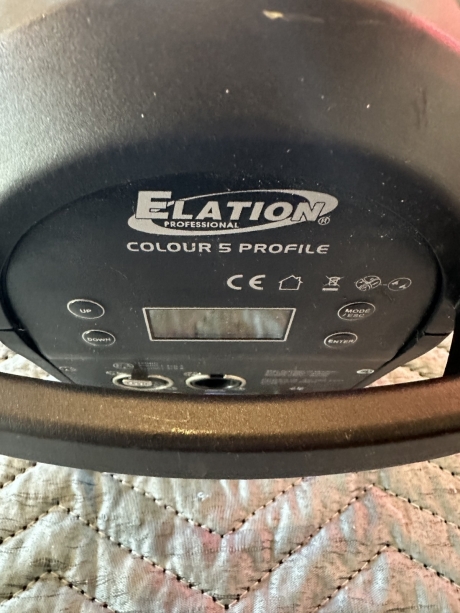

Multiple DMX channel modes provide setup flexibility, while the (4) button LCD control display panel supports straightforward local configuration. Connections include 5pin DMX in/out and powerCON in/out for streamlined data and power runs. Quiet fan cooling supports use in noise-sensitive environments, and the multi-voltage universal auto switching power supply (100-240v) simplifies deployment across venues.
Build and Physical Specs
An integrated rigging yoke supports standard hanging positions. Dimensions are 24.3 inches (618mm) to 26.5 inches (674mm) fully extended, 12.2 inches (310mm) wide, and 15.7 inches (398mm) vertical height. Weight is 21.0 lbs. (9.5 kg). Average LED life is rated at 50,000 hours.
Additional Details
- High CRI >94, 4,100 Total Lumens
- Interchangeable Lens Options (19 deg., 26 deg., 36 deg., 50 deg.) (not included)
- (4) Blade Manual Framing Shutters
- Variable Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Quiet Fan Cooling
- 180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
- 50,000 Hour Average LED Life
- >94CRI 4,100 Total Lumens
- Electronic Strobe and Dimming
- Variable Dimming Curve Modes
- Multiple DMX Channel Modes
- 4 Button Control Panel
- LED Menu Display
- 5pin DMX In/Out
- powerCON In/Out
- Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
- Width: 12.2” (310mm)
- Vertical Height: 15.7” (398mm)
- Weight: 21.0 lbs. (9.5 kg)
- (1) COLOUR 5 Profile Body
- Lens tubes are not included.
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Stamford, CT, USA
