30' x 40' P3.91mm LED Video Floor Package

This listing is for a 30' x 40' P3.91mm LED Video Floor Package. This LED floor has about 150 hours of use and shows normal wear and tear. These items are in good working condition.

Included in this package are:

• (1) 30' x 40' P3.91mm LED Video Floor
• Power Cables
• CAT6 Cables
• NovaStar Processor
• Receiving Cards
• Installation Guide Rails
• Spare LED Modules

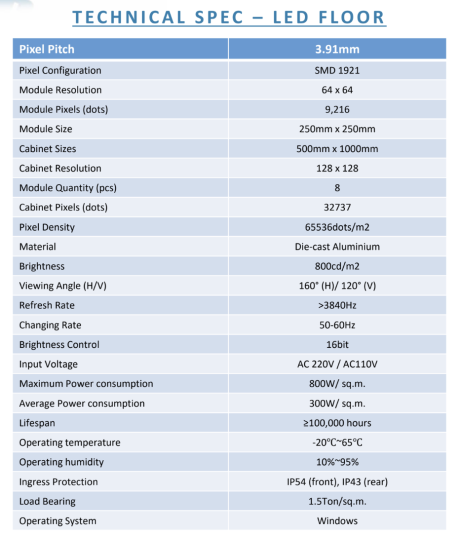

Built for events, stages, and immersive installations, this P3.91 LED video floor combines a tight 3.91mm pixel pitch with a high >3,840Hz refresh rate for clean camera performance and smooth motion. The die-cast aluminum cabinet construction and 1.5 Ton/sq.m. load bearing rating support foot traffic and production use, while the IP-rated design helps protect in real-world environments (IP54 front, IP43 rear).

Performance and Image Quality

The SMD 1921 pixel configuration and 65,536 dots/m² pixel density provide detailed visuals at close viewing distances. With 800cd/m² brightness, 16-bit brightness control, and a wide 160° horizontal and 120° vertical viewing angle, content remains consistent across viewing positions. The changing rate of 50–60Hz aligns with common video sources.

Floor-Ready Physical Design

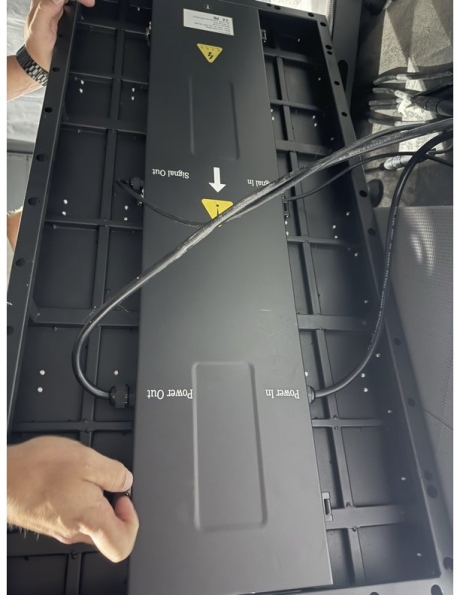

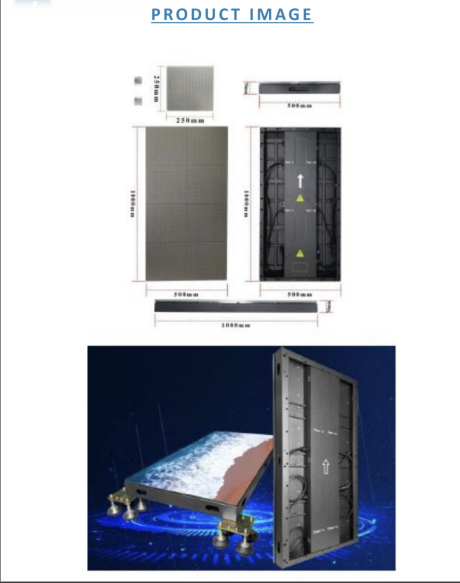

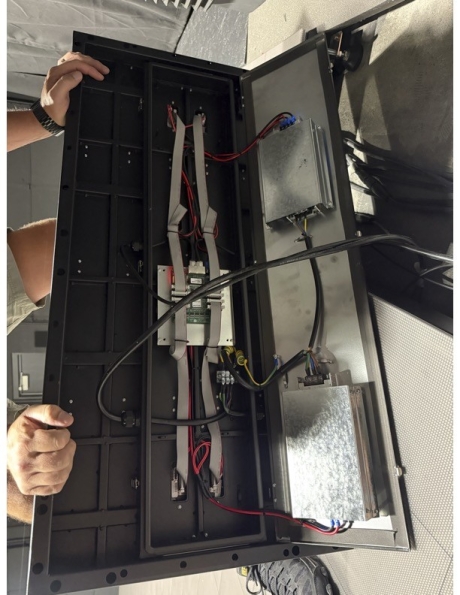

Each cabinet measures 500mm x 1000mm (128 x 128 resolution) and uses eight 250mm x 250mm modules (64 x 64 per module) for serviceability. The system is rated for operation from -20°C to 65°C and 10% to 95% humidity, with an estimated lifespan of ~100,000 hours.

Control and Signal Workflow

This LED floor is designed for a Windows-based workflow and uses NovaStar processing and receiving cards for video control and configuration. Input voltage support includes AC 220V or AC110V. Power consumption is rated up to 800W/sq.m. max, and 300W/sq.m. average.
