GLP Impression FR10 Bar

Ships from outside of the United States

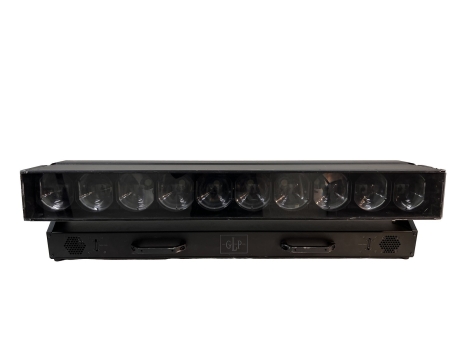

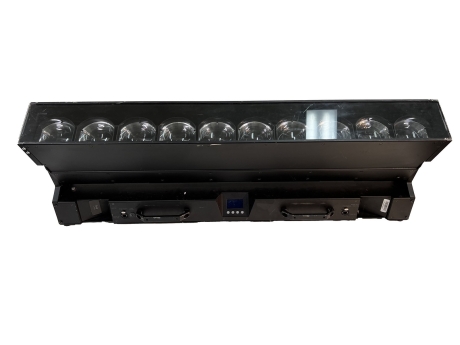

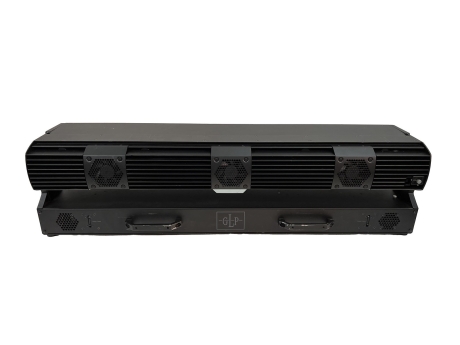

These GLP Impression FR10 Bar LED fixtures have heavy wear but are in good working condition.

Following on from the groundbreaking impression X4 Bar, GLP introduces the impression FR10 Bar, a linear format RGBW LED fixture built for stage and event lighting where you need both high output and fine creative control, while blending in with the existing X4 Bar series.

High-output RGBW sources with familiar GLP color matching

With a optical system, the impression FR10 Bar uses a larger size output aperture, as used in the impression FR1, giving a look to the familiar style. The FR10 Bar contains 10 sources, each containing a high output 60 Watt RGBW LED that color matches the entire impression X4 and FR series of fixtures. Each individual source features smooth, full range color mixing with strong, punchy output from a homogenized Fresnel lens. Along with individual color control, the FR10 Bar contains a series of built in color macros and a range of color filters.

Independent pixel zoom for beam, sheet, and wash looks

The impression FR10 Bar has the incredible ability to control each zoom lens individually and independently. With a 10:1 ratio zoom range of 3.7° to 35, this functionality brings a level of creativity, design possibility, and flexibility to the concept of linear lighting.

At its’ narrowest angles, the batten produces clean, seamless flat sheets of light that are incredibly dramatic and piercingly beautiful, along with arrays of pin point beams of light. At wider angles, the impression FR10 Bar can wash areas and surfaces of stages, walls, cycloramas, and much more. The addition of individual zoom control gives huge mid-air possibilities, along with the subtlety when needed, to get clear focus control on specific performance areas, at an individual pixel level.

Built to integrate with X4 Bar rigs and modern control networks

Utilizing the same physical construction as the popular X4 Bar 20, the FR10 Bar matches the X4 Bar 20 in length allowing the fixture to work effectively with the existing fixture. And just like the X4 Bar, the FR10 Bar features consistent pixel spacing between fixtures when using multiples connected together.

With its seamless integration, the FR10 Bar features 16 bit movement through a tilt range of 210 degrees, with integrated feedback. Power and data connectors are contained within the base of each unit for simple daisy chaining of multiple units. The FR10 can be rigged in any orientation and has in built rubber feet for floor mounting. Built in safety attachments, base handles and a tilt lock for transportation are all standard, along with a battery controlled menu system for easy fixture setup at any time.

The impression FR10 is powered from a fully auto sensing power supply for use around the world and uses Neutrik powerCON True1 connectors, input and output, whilst 5 pin XLR connectors and etherCON support sACN, Artnet, DMX and RDM protocols. While maintaining perfect backwards compatibility, the impression FR10 Bar gives designers more flexibility than ever before, and takes linear lighting to the next level.

Specs that matter in production

• 10 x 60 W RGBW LED sources, homogenized Fresnel lens
• Output: 5,800 lm, CRI (Ra) 80+, TLCI 80+
• Zoom: 3.7° to 34° (Zoom Ratio 1:7), with individual lens control
• Tilt: 210° with 16-bit high-resolution control and feedback
• DMX channel modes: 25, 51, 57, 79
• Protocols: sACN, Art-Net, DMX, RDM via 5-pin XLR and Neutrik etherCON (failsafe)
• Power: 100 to 240 VAC, Neutrik powerCON TRUE1 In/Out
• IP20 housing (black), high-impact flame-retardand thermoplastic with aluminum and steel metal plates
• Size (head straight up): 339 mm (H) x 1,000 mm (W) x 196 mm (D), weight 24 kg
