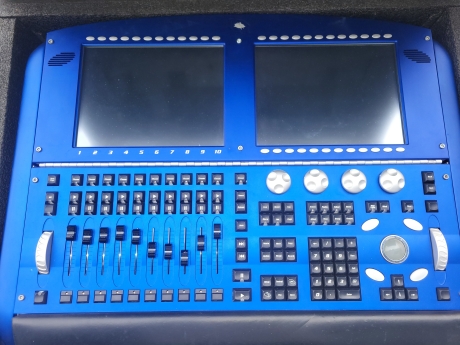

High End Wholehog III Console
Description
This High End Wholehog III console has minor wear and is in good working condition.
The High End Wholehog III Console is a professional lighting control desk designed for programming and playback of conventional, automated, and digital lighting fixtures in live events, theatre, and touring workflows. Wholehog 3 offers programmers significant advances in console technology, whether you're using conventional, automated or digital lighting products. With the perfect blend of style and function, the Wholehog III streamlines operations, lowers costs and opens creative doors.
Control Surface and Playback Workflow
Two large high-brightness color touchscreens with an adjustable viewing angle provide fast access to palettes, cues, and programming tools. A backlit trackball with four configurable buttons supports cursor and position control, while 10 playback faders with familiar controls (Choose, Go, Pause, and Flash) are built for hands-on busking and reliable cue execution.
Connectivity, Expansion, and Integration
The console supports two external VGA/SVGA monitors (including touchscreens), giving you additional workspace for programming and playback. MIDI input and output support MIDI Show Control and MIDI Time Code for syncing lighting with other show systems. Two USB ports accommodate a printer and Wholehog III accessories, and the console offers direct connection to several standard visualization packages for pre-visualization and offline workflow.
Quiet, Rugged Design for Production Use
Custom-designed embedded electronics (not a standard computer motherboard) and virtually silent operation (no fans) make the Wholehog III well-suited for noise-sensitive venues. The precision-machined aluminum construction with a wear-resistant anodized finish is designed for easy maintenance. Desklights, feedback LEDs, and LCD backlighting are all dimmable for dark-room operation.
Storage, Audio, and Power Protection
Onboard storage includes an internal hard disk drive, ZIP drive, and re-writable CD-ROM drive. Audio features include stereo line in and out plus two internal speakers. Power-fail protection via an internal battery helps prevent data loss during an outage. The auto-ranging mains input supports 90 to 250 VAC.
Dimensions
29.92 in (w) x 22.83 in (d) x 4.33 in (h) / 760mm (w) x 580mm (d) x 110mm (h).
Additional Details
- Two large high-brightness color touchscreens, with adjustable viewing angle
- Backlit trackball with configurable buttons (4) for cursor and position control
- Playback faders (10) with familiar playback controls (Choose, Go, Pause & Flash)
- Custom-designed embedded electronics—does not use a standard computer motherboard
- Supports two external monitors (VGA/SVGA)—can be touchscreens
- Direct connection to several standard visualization packages
- Virtually silent operation—no fans
- Internal hard disk drive, ZIP drive and re-writable CD-ROM drive
- MIDI Input and Output supports MIDI Show Control and MIDI Time Code
- Universal Serial Bus ports (2) for printer and Wholehog III accessories
- Audio stereo line in and out, with two internal speakers
- Realtime clock
- Desklights, feedback LEDs and LCD backlighting all dimmable
- Designed for easy maintenance
- Auto-ranging mains input (90-250 VAC)
- Power-fail protection (internal battery) prevents data loss on power fail
- Console construction of precision-machined aluminum, with a tough wear-resistant anodized finish
- Dimensions: 29.92 in (w) x 22.83 in (d) x 4.33 in (h) / 760mm (w) x 580mm (d) x 110mm (h)
- (1) Wholehog III Console
- (1) Road Case
