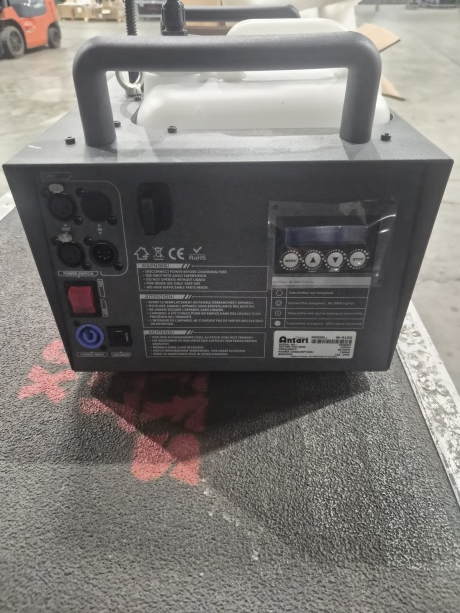

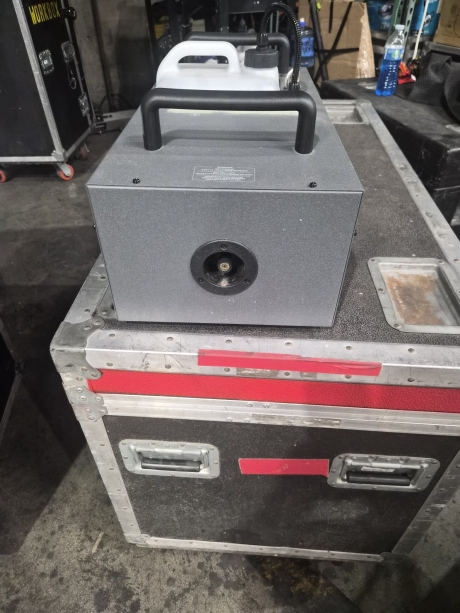

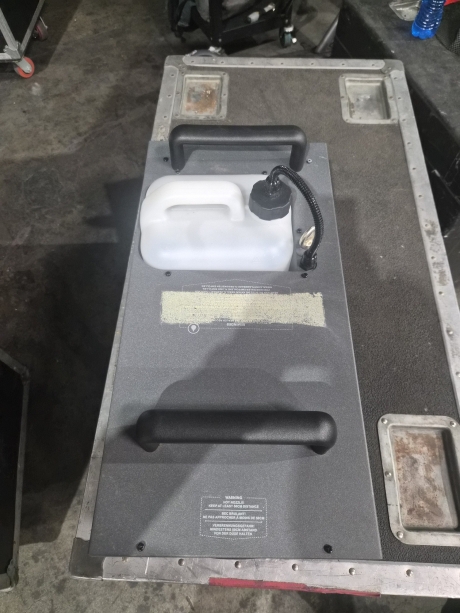

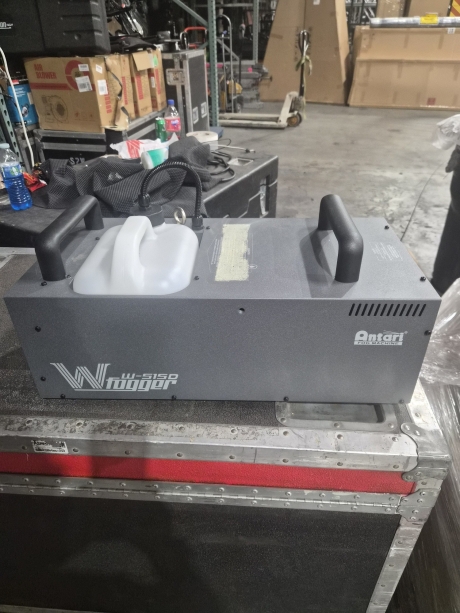

Antari W-515D Fog Machine
Description
These Antari W-515D Fog Machines show signs of wear but are in good working condition.
The Antari W-515D Fog Machine is built for stage, event, and venue atmospherics where you need reliable output and flexible control. As an upgraded version of W-515, it keeps the core strengths of the W-Series and adds onboard W-DMX for a completely wireless setup, making it easier to integrate into DMX and wireless control workflows.
Wireless DMX control and flexible operation
With built-in Wireless DMX and auto-sense frequency, the W-515D can be run wirelessly or through standard connections, depending on your rig. Control options include Manual, Timer, DMX 512, Wireless, and Wireless DMX, with a simple 1-channel DMX footprint for straightforward programming. Connectivity includes IEC power and 3-pin XLR DMX.
Cleaner bursts and longer heater life
The piping system with an electronically controlled solenoid valve helps remove remaining fluid, producing a clear burst without excess fog. This design also extends heater lifespan expectancy, which is especially useful for repeated cueing in shows and frequent use in rental inventories.
Performance, fluid, and practical specs
- 1500W rated power, AC 100-120V, 50/60Hz 9A
- Warm-up time: 10 minutes (approx.)
- Fluid consumption: 100 ml/min with continuous output capability
- Fluid tank capacity: 6 Liters (1.59 gallon) with opto-electronic fluid sensor
- Compatible fluid: Antari FLG Heavy Fog Fluid, Antari FLR Light Fog Fluid, Antari FLH Super Fog Fluid
- Ambient temperature range: 0°C – 40°C (32°F – 104°F)
- Dimensions: L 561 W 278 H 265 mm (L22.09 W10.94 H10.43 inch)
- Weight: 14.5 kg (31.97 lbs)
Additional Details
| Ships From: | Commerce, CA, USA |
| Manufacturer: | Antari |
| Condition: | Good |
| Model: | W-515D |
| Item #: | 61970 | Brokered |
| Tags: | Fog & haze machines, Effects, Foggers, Foggers / hazers / snow |
- Built-in Wireless DMX
- Auto sense frequency
- Continuous output
- Wireless control
- Opto-electronic fluid sensor
- Input voltage: AC 100-120V, 50/60Hz 9A
- Rated power: 1500W
- Warm-up time: 10 minutes (approx.)
- Fluid consumption: 100 ml/min
- Fluid tank capacity: 6 Liters (1.59 gallon)
- Compatible fluid: Antari FLG Heavy Fog Fluid, Antari FLR Light Fog Fluid, Antari FLH Super Fog Fluid
- Ambient temp.range: 0°C – 40°C (32°F – 104°F)
- Control: Manual, Timer, DMX 512, Wireless, Wireless DMX
- DMX channels: 1 channel
- Connection: IEC (Power), XLR 3-pin (DMX)
- Dimension: L 561 W 278 H 265 mm (L22.09 W10.94 H10.43 inch)
- Weight: 14.5 kg (31.97 lbs)
- (1) W-515D Fog Machine
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Commerce, CA, USA
