Elation CUEPIX BLINDER WW2
Description

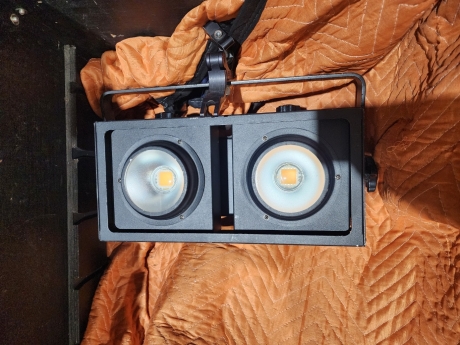

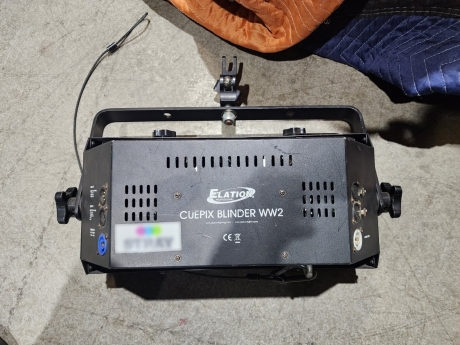

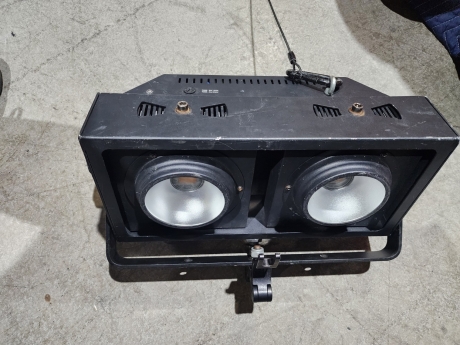

These Elation CUEPIX BLINDER WW2 LED blinders show signs of wear and tear, but are in good working condition.
The Elation CUEPIX BLINDER WW2 is a warm white LED blinder designed for stage and event lighting, delivering a classic tungsten-style look with (2) 100W 3,200K COB LEDs and a 60° beam angle (80° field angle). Built for flexible rigs and cue-to-cue reliability, it supports DMX control plus RDM (Remote Device Management), offers flicker free operation for TV and Film, and includes strobe effects and selectable dimming curves for smoother fades on camera and in-person.
Control and programming flexibility
Each COB module can be controlled individually, with 0% to 100% dimming per module and variable dimming curve options to match different consoles and show styles. Choose from 4 DMX channel modes (1 / 2 / 3 / 4) to keep programming simple for basic blinder hits or expand control when you need independent output management. For setups that do not require a console, the fixture also supports stand alone operation with a master/slave function.
Tour-ready connections and on-board setup

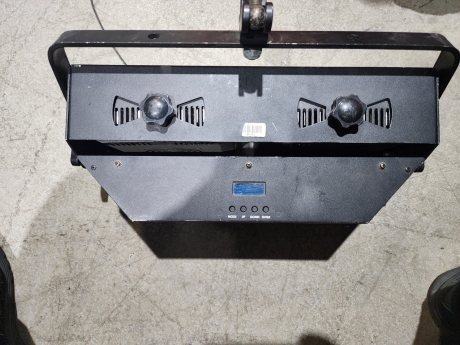

The CUEPIX BLINDER WW2 is designed to integrate into professional lighting systems with both 3-pin and 5-pin DMX in/out, plus powerCON power in/out for streamlined power linking. On the fixture, an LCD menu display with a 4 button control panel makes addressing and mode changes straightforward, while the integrated rigging bracket supports fast mounting and repositioning. It also provides manual pan focus for each COB module to help shape coverage where you need it on stage.
Output and electrical specs
- Maximum output: 5900 max LUX (548 fc) @ 1 m (full on)
- LED life: 100,000 hour average life
- Power: Multi-voltage universal auto switching power supply (100-250v)
Size and weight
- Length: 18.8 in (478 mm)
- Width: 7.1 in (181.2 mm)
- Horizontal height: 10.2 in (259.4 mm)
- Weight: 11.2 lbs (5.1 kg)
Additional Details
| Ships From: | Lititz, PA, USA |
| Manufacturer: | Elation Professional |
| Condition: | Good |
| Item #: | 61642 | Brokered |
| Tags: | Leds, Effects, Led effects/efx, Led white, Strobes |
- High Power Long Life Warm White COB LEDs
- 60 deg. Beam Angle / 80 deg. Field Angle
- Individual Control of Each COB Module
- Dimming: 0% - 100% of Each COB Module
- RDM (Remote Device Management)
- Flicker FREE Operation for TV and FILM
- Stand Alone Operation with Master/Slave Function
- Integrated Rigging Bracket
- (2) 100W Warm White 3,200K COB LEDs
- 100,000 Hour Average Life
- 5900 Max LUX (548 fc) @1M (Full On)
- Strobe
- Variable / Selectable Dimming Curves
- 4 DMX Channel Modes (1 / 2 / 3 / 4)
- 4 Button Control Panel and LCD Menu Display
- 3pin and 5pin DMX In/Out
- RDM (Remote Device Management)
- powerCON Power In/Out
- Length: 18.8” (478 mm)
- Width: 7.1” (181.2 mm)
- Horizontal Height: 10.2” (259.4 mm)
- Weight: 11.2 lbs. (5.1 kg)
- (1) CUEPIX BLINDER WW2
