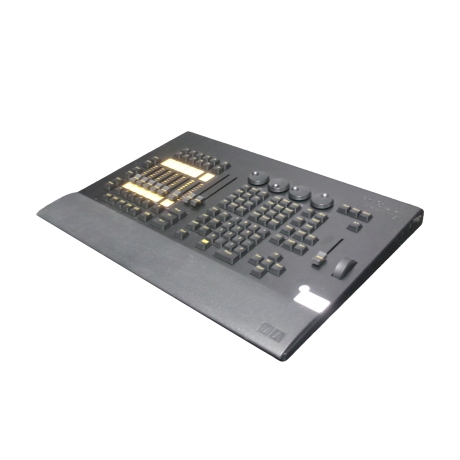

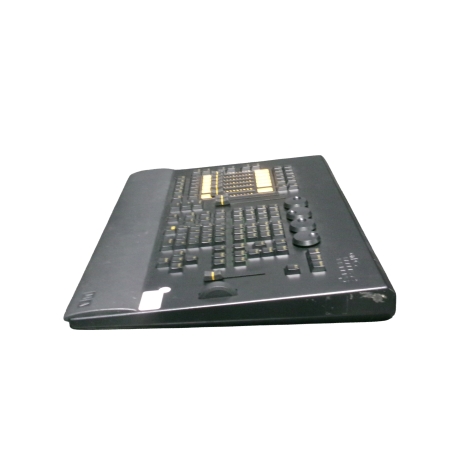

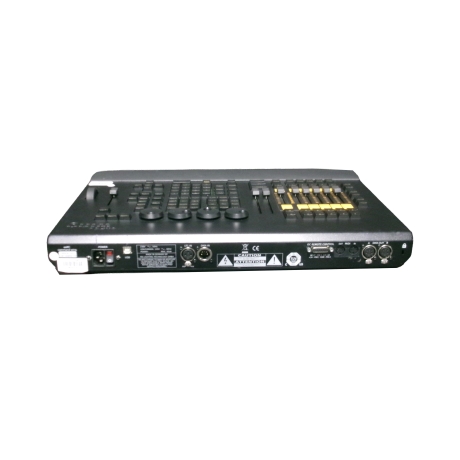

MA Lighting grandMA2 onPC Command Wing

Unit shows normal signs of wear & tear. Photos are of the unit you will receive.

The MA Lighting grandMA2 onPC Command Wing paves the way for mobile use of the highly flexible and powerful grandMA2 control system. In combination with the free of charge grandMA2 onPC software, the MA onPC command wing is a portable 2,048 parameter control solution that can be used in nearly any location, giving programmers and operators hands-on playback control without bringing a full-size console.

Mobile grandMA2 Control with Physical Playback

Designed to connect via USB to a PC running grandMA2 onPC, this wing mirrors the familiar grandMA2 command section layout for fast, confident operation in touring rigs, corporate events, theaters, houses of worship, and pre-programming environments. The compact, ergonomic chassis stays manageable for travel while still providing the tactile controls many operators prefer over mouse-only workflows.

Connectivity and Output Options

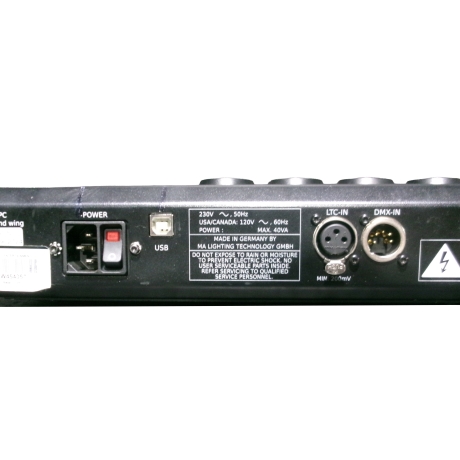

For straightforward DMX integration, the unit includes two built-in DMX ports. It also supports sending two additional DMX universes via Ethernet, making it easy to scale from a small rig to more complex systems as your networked lighting workflow grows.

Key Features and Hardware Details

• Real-time control for 2,048 parameters in combination with grandMA2 onPC (up to 65,536 parameters as backup in the MA system)
• Expandable up to 4,096 parameter
• Command section similar to grandMA2 layout
• 2 A/B faders (100mm) plus 1 Level-Wheel for precise intensity and playback adjustment
• Individually backlit and dimmable silent (clickless) keys for quieter operation in sensitive venues
• Integrated universal power supply (90-240V, 50-60Hz)
• Dimensions: 536 x 395 x 70mm (21.1 x 15.6 x 2.8in)
• Weight: 6kg (13.2lbs)

Included accessories, such as the dust cover and USB A to USB B adapter, help streamline setup and protect the wing between shows.
