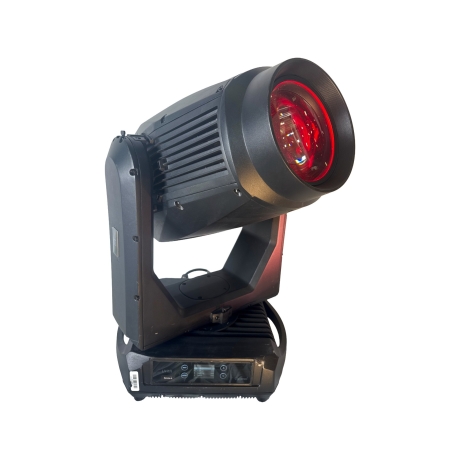

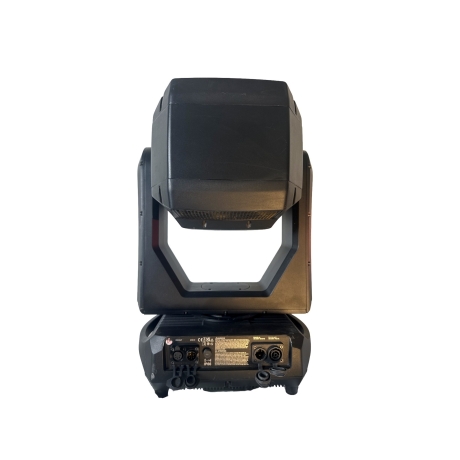

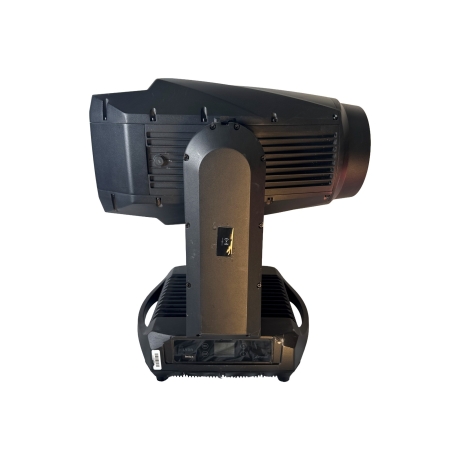

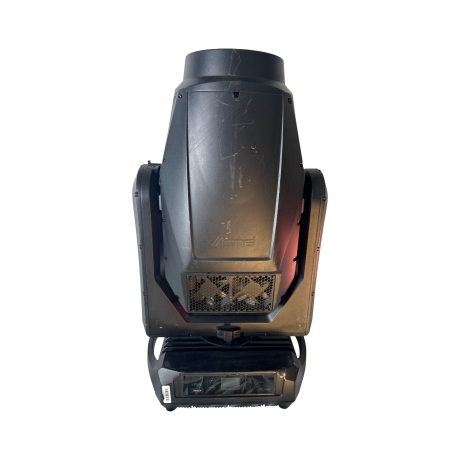

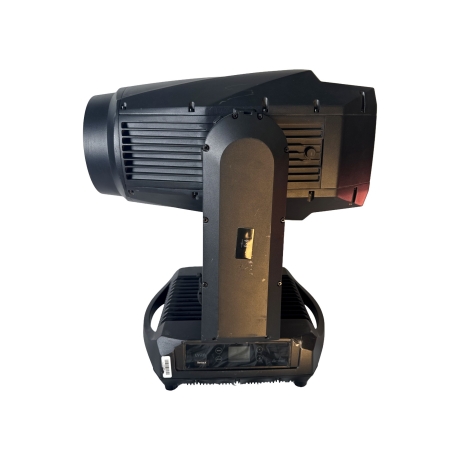

ACME LYRA

Ships from outside of the United States

These ACME LYRA LED moving lights show signs of heavy wear but are in good working condiiton.

The LYRA is a multifaceted, LED spot fixture that ACME designed and manufactured to deliver the performance you need and take on the outdoors in all weather conditions. Rated IP66, the LYRA fixture's powerful 1000-Watt white LED engine delivers 35,000 lumens at a native 8000K color temperature.

Color Mixing and Output Modes

The unit has a CMY color mixing system, a fixed color wheel with five colors plus one high CRI filter, and offers a linear CTO color correction from 2700K to 6700K (listed as 2,700K-6,500K in the specifications). It supports Standard Mode (Ra>70) and HCRI Mode (Ra>90), with total lumen output of Ra>70: 35,000 lumens and Ra>90: 25,600 lumens. Color temperature output of fixture is 6,500K, and life expectancy is 20,000 hours.

Gobos, Prisms, Animation, and Framing

For effects, the LYRA has one rotating gobo wheel with seven high-precision rotating gobos, a static gobo wheel with nine gobos, and a bidirectional animation wheel with numerous effects. Beam-shaping tools include two combinable prisms (4-facet prism and 4-facet linear prism), iris, and a 4-blade shutter system that provides full blackout and rotates in both directions, plus light and medium frost filters.

Optics and Zoom

The fixture features a 160 mm frontal lens and has a zoom range of 6° to 50°, producing sharp, crisp images throughout its range (zoom range listed as 6°-50° in the specifications).

Control and Movement

Protocols include DMX512 and RDM, with 5 DMX protocol modes and channel options of 22/30/31/39/40. Pan movement is 540° and tilt movement is 260° with automatic pan/tilt position correction, selectable 8 or 16 bit resolution, and a pan/tilt lock. User controls include a 4 touch button control panel and LCD display, with firmware upgrade via DMX link.

Physical Specs

• Width: 412 mm (16.2")
• Depth: 330 mm (13.0")
• Height: 719 mm (28.3")
• Weight: 42 kg (92.6 lbs)
