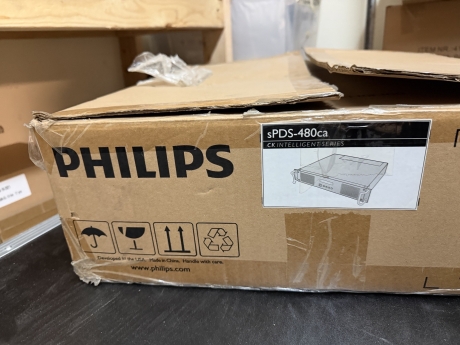

Philips sPDS-480ca 24V Power/Data Supply
Description
These Philips sPDS-480ca 24V Power/Data Supplies were purchased new and never used. They are in like new condition.
The Philips Color Kinetics sPDS-480ca 24V is a combined power and data supply built for large-scale Ethernet LED lighting installations using low-voltage Color Kinetics luminaires. It is designed to simplify rack-based deployment by delivering centralized 24V power while supporting Ethernet network control workflows commonly used in architectural and entertainment lighting systems.
Power Output and Electrical Design
sPDS-480ca 24 V delivers 480 watts of output across eight ports rated at 30 watts each, making it well suited for multi-fixture runs where consistent low-voltage power distribution is critical. It automatically accommodates input voltages from 100 VAC to 240 VAC for flexible use in mixed or international power environments. A standard IEC power inlet accepts both US and international power cables.
Protection and Thermal Management
Short-circuit protection helps prevent device failure from incorrectly wired fixtures. Over-temperature detection with selectable shutdown options protects the unit if it is operated beyond its rated temperature specification. Variable-speed fans help keep noise levels down and include serviceable air filters to support longer-term operation in enclosed racks or equipment rooms.
Installation and Onboard Setup Tools
Housed in a 2U rack-mountable enclosure, sPDS-480ca 24 V includes rack handle and surface-mount brackets for flexible mounting. Onboard controls provide automatic luminaire discovery and testing, which can reduce setup time when bringing fixtures online. A backlit LCD supports quick menu navigation and status checks in low-light environments.
Additional Details
| Ships From: | Las Vegas, NV, USA |
| Manufacturer: | Philips |
| Condition: | Like New |
| Model: | Philips sPDS-480ca 24V (Item #: 9105 037 00110) |
| Item #: | 61189 | Brokered |
| Tags: | Leds, Led power/data supply |
- sPDS-480ca 24 V delivers 480 watts of output via eight 30-watt ports and automatically accommodates input voltages ranging from 100 VAC to 240 VAC. Short-circuit protection prevents device failure due to incorrectly wired f. The standard IEC power inlet accepts both US and international power cables.
- Housed in a 2U rack-mountable enclosure, sPDS-480ca 24 V includes rack handle and surface-mount brackets, for versatile mounting options.
- With onboard controls, sPDS-480ca 24 V incorporates automatic luminaire discovery and testing, eliminating the need for additional addressing tools or software. sPDS-480ca 24 V features a backlit LCD for easy menu viewing.
- Over-temperature detection and selectable shutdown options protect sPDS-480ca 24 V against operation beyond its rated temperature specification. Variable-speed fans keep noise levels low and include serviceable air filters.
- (1) sPDS-480ca 24V Power/Data Supply
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Las Vegas, NV, USA
