Yamaha Rivage PM5 CS-R5 Control Surface

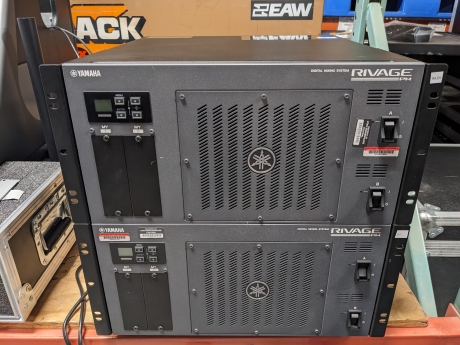

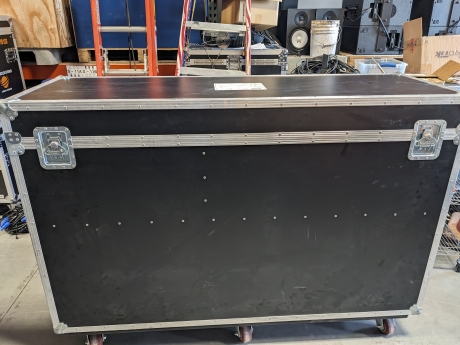

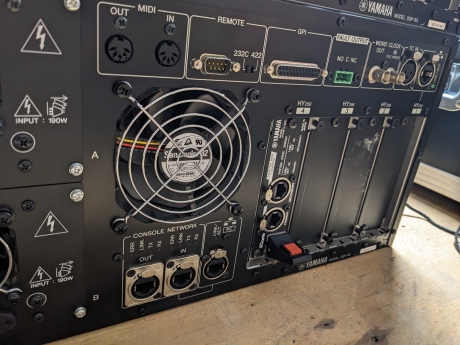

This Yamaha Rivage PM5 CS-R5 Control Surface shows signs of wear but is in good working condition. This console comes with (2) DSP-RX Mix Engines and both have (1) HY144-D-SRC card installed. A road case is also included.

The Yamaha RIVAGE PM series is highly regarded for its outstanding sonic quality and flexible control. Now new CS-R5 and CS-R3 control surfaces plus DSP-RX and DSP-RX-EX DSP engines add levels of versatility and scalability.

Control Surface Workflow

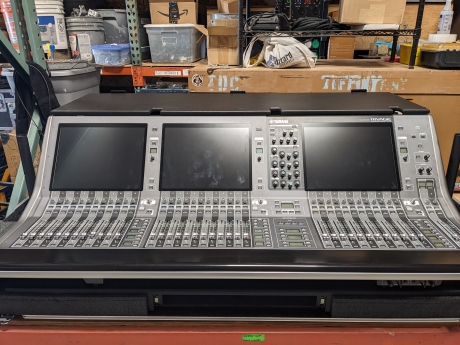

The CS-R5 control surface for RIVAGE PM5 systems features three large touch screens and a condensed selected channel section that contribute to smooth, intuitive operation. The physical depth of the console has been significantly reduced for more comfortable operation and improved sight lines. With a familiar combination of touch screens and selected channel controls, the CS-R5 can feel approachable for engineers moving between RIVAGE PM systems and Yamaha CL or QL series consoles.

Mix Engine Capacity

The DSP-RX engine provides 120 inputs, 48 mix buses, and 24 matrices, while the DSP-RX-EX engine has 288 inputs, 72 mix buses, and 36 matrices.  This kind of bus and matrix count is well-suited to complex live productions that require multiple monitor mixes, broadcast/stream feeds, and zone or delay-speaker routing.

Key Specifications

• Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Faders and UI: 100 mm touch-sensitive motorized fader (resolution=1024 steps) x 38, 15" multi-touch screen (high brightness, wide view angle) x 3, touch sensitive knobs in the Selected Channel section
• Power requirements: 100-240 V, 50/60 Hz
• Power consumption: 300 W
• Dimensions (WxHxD): 1444 mm × 414 mm × 643 mm (including the rubber feet)
• Weight: 42 kg
