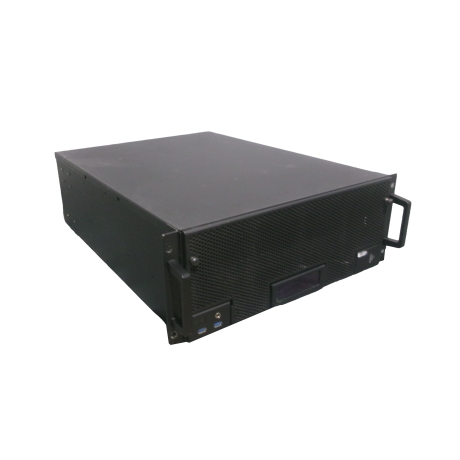

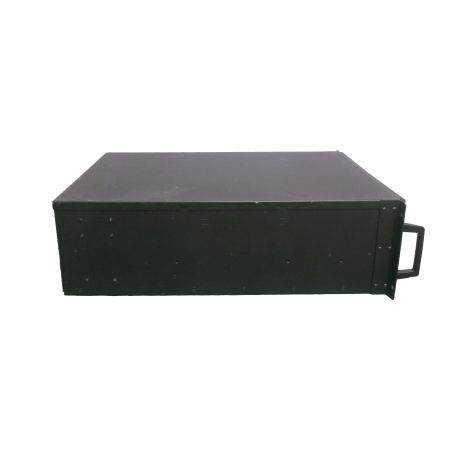

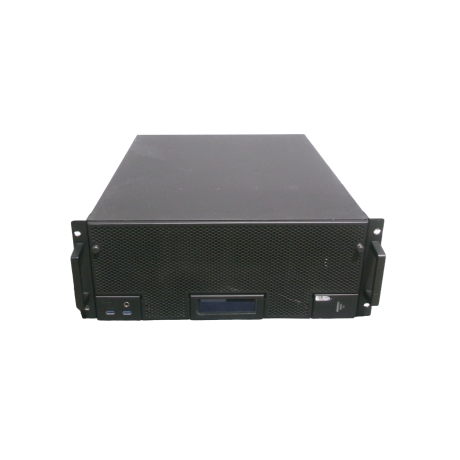

Disguise vx 4 Media Server

The Disguise vx 4 Media Server is a high-performance media server built for demanding live production, virtual production, and large-scale show control workflows. Optimised for playing up to four times uncompressed 4K60 and lossless 10-bit video, the vx 4 powers content at high quality, smoothness and resolution.

Does not include license.

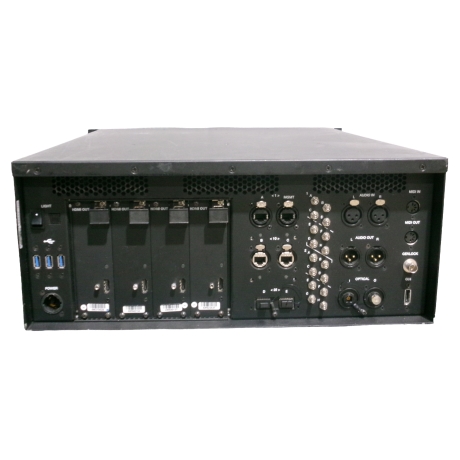

High-Bandwidth 4K Video Output and Multi-Input Capture

Designed for multi-display playback and reliable I/O in production environments, the vx 4 provides a dedicated DisplayPort 1.4 GUI output plus four 4K video outputs via VFC cards (includes 4x HDMI VFC cards). For ingest and routing, it offers 16x 3G inputs with support for quad-3G for 4x 4K inputs (HD-BNC connectors), making it well-suited for setups that need multiple synchronized sources and high-resolution content delivery.

Audio, Sync, and Control Connectivity

For integration into audio and control systems, the vx 4 includes balanced XLR audio (2x in, 2x out) and analogue monitoring via a 1/4 headphone jack. Optical audio is supported via ADAT/SPDIF (Toslink, 1x in, 1x out), and MIDI I/O (5-pin DIN, 1x in, 1x out) is available for show control and time-based triggering workflows. A BNC genlock input supports video sync requirements across a broader system.

Networking and Peripheral Expansion

The server includes multiple networking options for control, media distribution, and high-throughput pipelines: 1x 1Gb/sec Ethernet, 2x 10Gb/sec Ethernet, plus 2x 25Gb/sec Ethernet ports (SFP28). For external devices and peripherals, it provides 5x USB 3.0 ports.

Physical Specifications

• Dimensions: 17.09" x 6.97" x 23.39" (434mm x 177mm x 594mm)
• Weight: 21kg (46.3lbs)
