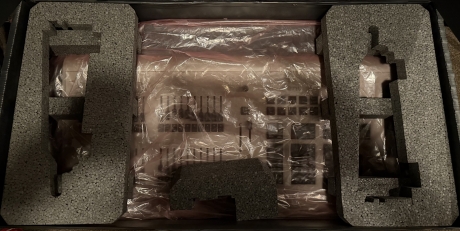

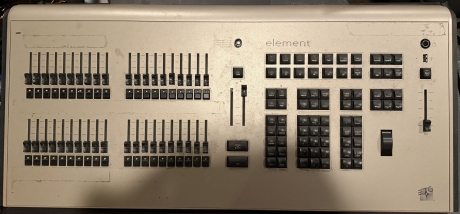

ETC Element 40 Console w/ Monitors
Description
This ETC Element 40 Console shows signs of wear but is in good working condition. (2) Monitors, a mouse, and a keyboard are included with this console.
Element offers affordable lighting control for smaller venues with single-console operators or volunteer staffs. It is designed primarily for conventional lighting rigs, while still supporting some motorized accessories, LEDs, and a few moving lights. For hands-on control, it provides LTP channel and submaster faders that can be switched by mode, and it uses on-screen On Demand ML Controls for more complex devices. To help operators work quickly, Element displays command prompts on screen above the command line.
Control Surface and Workflow
With 40 faders (pageable as channel or submaster control) plus a master playback pair with 60 mm faders and dedicated Go and Stop/Back controls, the Element 40 supports a straightforward programming style that is easy to run during live events. User Definable Direct Selects and user configurable, interactive Magic Sheets help keep frequently used channels, cues, and looks close at hand.
Programming Tools for LED and Moving Light Use
Element includes Intensity, Focus, Color, and Beam palettes, along with stepped, relative, and absolute effects for building repeatable looks. For color workflows, it offers six color pickers plus a gel picker, supporting both LED and CMY color mixing.
Connectivity and Networking
This console supports ETCNet2, Net3/ACN, ArtNet, and Avab UDP output protocols, and it can integrate with distributed DMX, MIDI, SMPTE, and contact closure via Net3 Gateways. OSC and UDP transmit/receive are also supported for broader system integration and control.
Show File Compatibility
Show import is supported from Obsession, Express, Expression, Emphasis, Congo, Cobalt, Safari, Strand 500/300 Series, Grand MA1, and Grand MA2, which can simplify upgrades or console transitions when you need to reuse existing show data.
Capacity and Physical Specifications
- 1,024 outputs
- 250 channels
- 99 users, partitioned control
- Dimensions: 5.1" x 32.9" x 17.9"
- Weight: 30 lbs
Additional Details
- 1,024 outputs
- 250 channels
- 40 Faders, pageable as channel or submaster control
- User Definable Direct Selects
- User Configurable, interactive Magic Sheets
- Master Playback pair with 60mm faders, Go, Stop/Back
- Intensity, Focus, Color and Beam Palettes
- Stepped, Relative and Absolute Effects
- Six Color Pickers and Gel Picker for LED, CMY color mixing
- 99 users
- Partitioned control
- ETCNet2, Net3/ACN, ArtNet and Avab UDP output protocols
- Show import from Obsession, Express, Expression, Emphasis, Congo , Cobalt, Safari, Strand 500/300 Series, Grand MA1 and Grand MA2
- Distributed DMX, MIDI, SMPTE and contact closure via Net3 Gateways
- OSC Transmit/Receive
- UDP Transmit/Receive
- Dimensions: 5.1" x 32.9" x 17.9"
- Weight: 30 lbs
- (1) Element 40, 250 Channels
- (2) Monitor
- (1) Mouse
- (1) Keyboard
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Oakdale, NY, USA
