ESDlumen Dazzle III 4.8mm LED Video Tile (Pkg of 100)

This listing is for a Package of (100) ESDlumen Dazzle III 4.8mm LED Video Tiles. These units were recently serviced and are in good working condition.

Included in this Package are:

• (100) Dazzle III 4.8mm LED Video Tile
• (4) Dazzle III 4.8mm LED Video Tile (Spare)
• (100) TRUE1 PowerCON Jumper
• (12) TRUE1 PowerCON to Edison Cable
• (1) Novastar 660 LED Processor

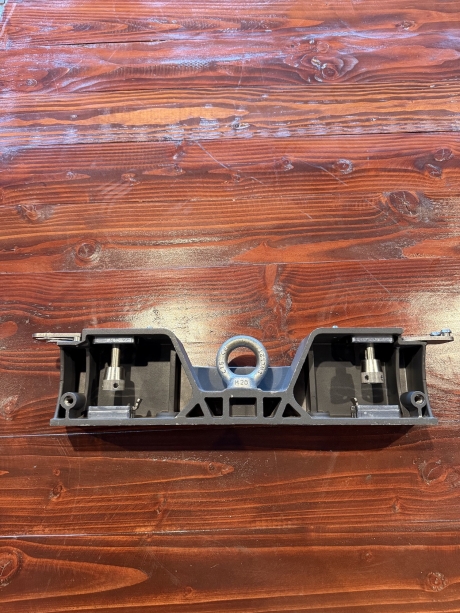

• (25) Rigging Bar

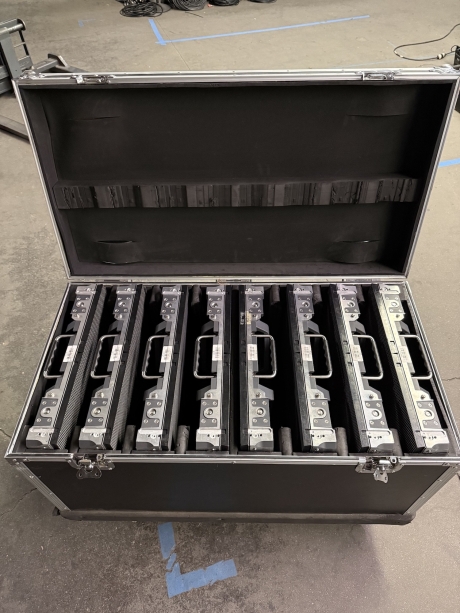

• (13) 8-Unit Road Case

Esdlumen Dazzle III is a LED video wall which has the capabilities to be a flat screen, or to curve at 5° in either a concave or convex formation; making creative options with this screen endless. Designed for rental and event staging applications such as model shows and musical festivals, this system helps you build flexible video wall configurations while maintaining consistent image performance across the wall.

Flexible Video Wall Design

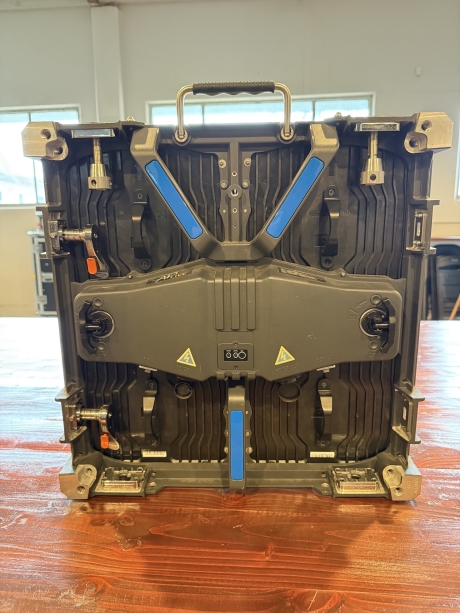

Each tile uses a 500 x 500 x 75 mm cabinet format, making it practical to scale into larger walls or build creative shapes. The cabinet design supports a 5° curve in either concave or convex formations for wrapped or sculpted installs, while still allowing traditional flat builds when your event calls for a standard video wall layout.

Image Performance for Live Events

The Dazzle III 4.8mm tile provides a 4.81 mm pixel pitch with a pixel density of 43,264 dots/m² for clean viewing at typical mid-range audience distances. With 1200 cd/m² brightness, 16-bit grayscale, and a 3840 Hz refresh rate, it is well-suited for on-camera use and fast-moving content, helping reduce visible flicker and banding during filming.

Wide Viewing Angles and Consistent Color

Using SMD2121 LEDs and 140° horizontal and vertical viewing angles, the wall stays readable across a wider audience footprint, including side seating and walk-around environments.

Power and Physical Specifications

Each cabinet weighs 9.6 kg and features a cabinet resolution of 104 x 104. Power input supports 100-240V AC for flexible deployment across venues. Power consumption is rated at 736 W/m² max and 220 W/m² average, which helps with planning circuits, generators, and thermal load for touring and temporary installs. The tiles are rated IP20 for indoor use.

System Integration

This package includes a Novastar 660 LED processor, supporting a streamlined control workflow for event playback and live production environments. Module size is 250 mm x 500 mm for serviceability and consistent alignment across the wall.
