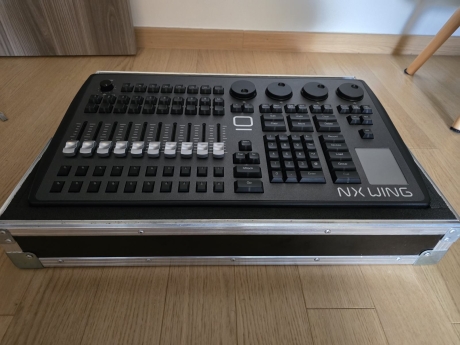

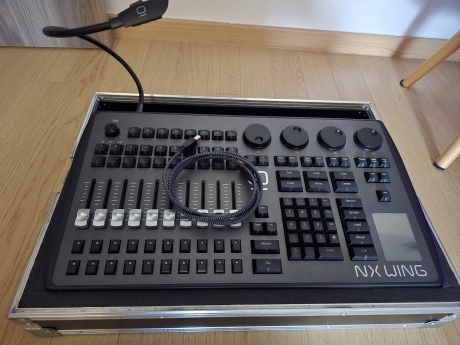

Obsidian NX Wing

This Obsidian NX Wing is from 2022. It has minor wear and is in like new condition.

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.

Hands-On ONYX Playback and Programming Control

Designed to bring the feel of a dedicated lighting console to a PC-based workflow, the Obsidian NX Wing puts frequently used playback, programming, and parameter controls within immediate reach. The layout mirrors the NX 2 console, which helps reduce training time for operators moving between systems and makes it easier to run shows confidently from a compact USB surface.

• 10x 60 mm playback faders, each with 4x function-assignable buttons
• 8x customizable multi-function keys
• Playback Select button
• Master Go section with Go, Pause, Snap and Release
• 4x digital rotary encoders with push function and status LED for fixture parameter control
• 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
• Grand master rotary fader and button
• Blind/HighLight/Last/Next buttons
• Full numerical keypad and command keys

Connectivity for Lighting Networks, MIDI, and Timecode

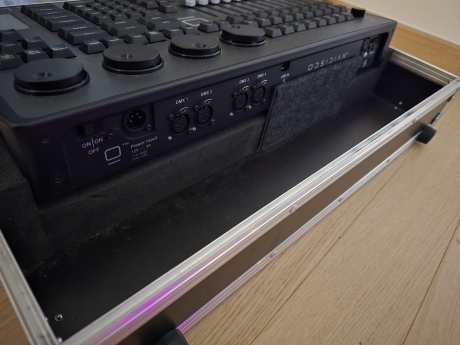

NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 64 Universes of control when connected to ONYX on a PC. This makes it well-suited for venues and production environments that need reliable physical control, along with straightforward integration into existing rigs and show control systems.

• 4x DMX / RDM Universe In/Out: 5pin locking XLR
• MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN
• SMPTE Timecode In/Out: 3pin XLR
• USB In: USB 2.0 B

Power and Physical Specifications

• 12 VDC power supply input: 4pin XLR
• Desk lamp: XLR 12V
• AC mains power to 12VDC external PSU (included): 100-240V nominal, 50/60 Hz
• Maximum current: 3A
• 12VDC output: 11A, 132W max.
• Length: 300 mm (11.9 in.)
• Width: 540 mm (21.3 in.)
• Height: 99 mm (3.9 in.)
• Weight: 4.6 kg (10.2 lbs.)

Ships from outside of the United States
