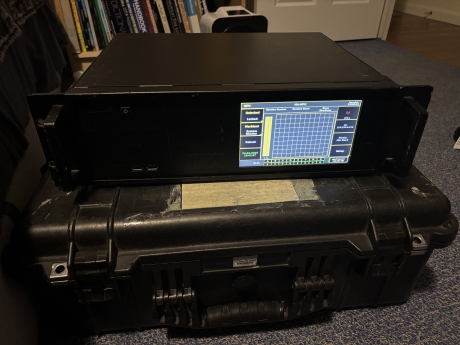

MA Lighting NPU Network Processing Unit

This MA Lighting NPU Network Processing Unit shows signs of wear but is in good working condition.

The MA NPU (Network Processing Unit) adds dedicated processing power and parameter capacity to a grandMA2 network, offering performance equivalent to grandMA2 consoles. Designed to bridge Ethernet-based control data and DMX fixtures, it is well-suited for centralized parameter expansion or decentralized DMX distribution in professional lighting rigs.

Network-to-DMX Processing for grandMA Systems

The MA NPU is the link between Ethernet and DMX controlled devices. It adds processing power and parameters to the MA system, converting incoming Ethernet data into DMX data for decentralized DMX networks. The converted data are transmitted via 8 independent DMX XLR 5-pin connectors, each configurable as DMX inputs or outputs, which helps streamline multi-universe setups without relying on additional hardware such as DMX mergers.

Shared Resources and Redundant Operation

Within a network, several grandMA2 consoles share the available MA NPU devices. For parameter expansion the MA NPU shall be located in a centralized position, whereas MA xPort Nodes are used to distribute and output DMX data. This allows DMX devices being used by several consoles together, and it provides a redundant mode of operation without additional components such as DMX mergers.

Key Features and Specifications

• Real-time calculation for 65,536 parameters with a grandMA2 system (equivalent to 256 DMX universes)
• 4,096 HTP-/LTP-parameters
• 1 internal command screen with an easy to read touchscreen for quick status checks and configuration
• 1 Ethercon connector
• 4 USB 2.0 connectors
• grandMA series 1 compatibility mode
• Converts grandMA2 onPC to full featured lighting control system
• Dimensions: 485 x 332 x 126mm / 19 x 13 x 5inch
• Weight: 9kg / 19.9lbs
