Description
Package of (2) Maverick Force S Spot w/ dual road case included.

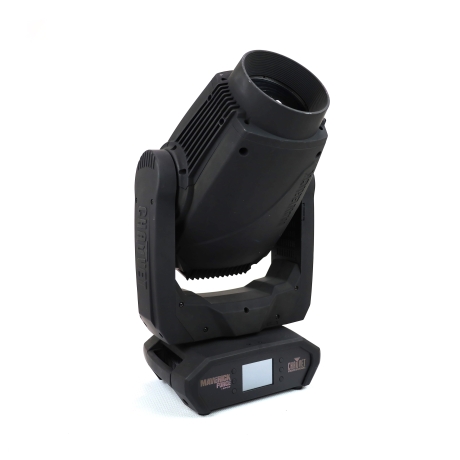

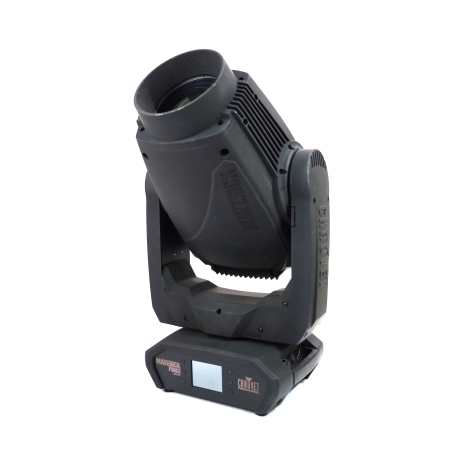

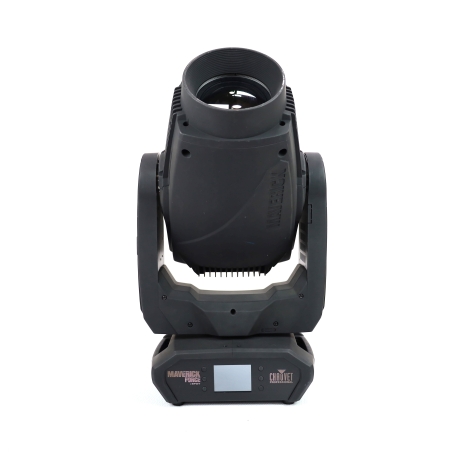

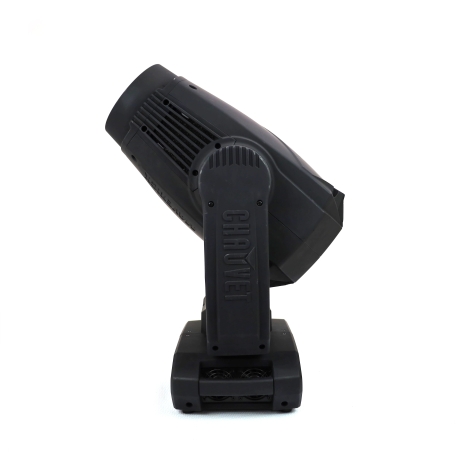

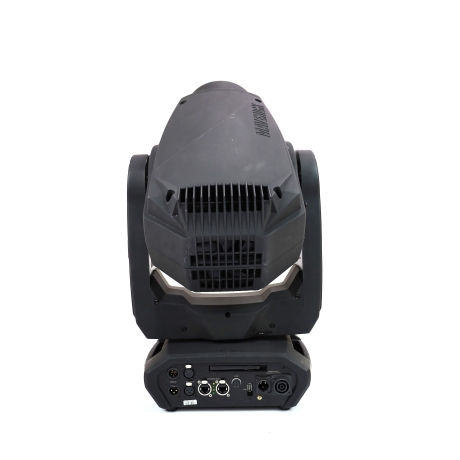

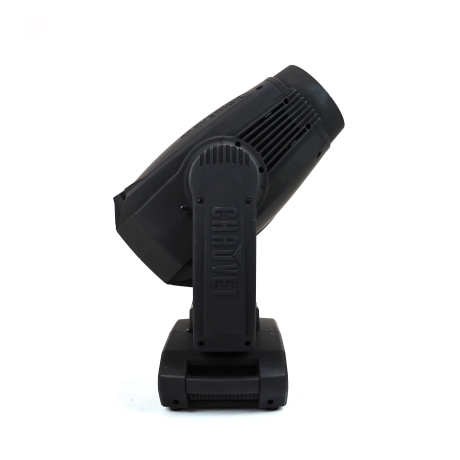

Maverick Force S Spot is a compact, fully featured 350 W LED yoke spot designed for small to medium, multi-faceted productions that need seamless color mixing, advanced optics, and flexible control in a lightweight fixture (well under 50 lbs). Its smart optical system is built to maximize output up to 14,000 lumens, delivering punchy beams for aerial looks while maintaining smooth fades with 16-bit master dimming.
Color, Optics, and Beam Shaping
Dial in precise looks with variable CMY color mixing and a 7-slot color wheel that supports split-color combinations and continuous scroll. A CTB filter and CRI filter provide additional tuning options when matching other fixtures or camera requirements. The wide, motorized zoom range (3.8° to 43.4°) makes it easy to move from tight, defined beams to broader coverage without changing fixtures, and the onboard effects engine adds creative and practical control with motorized focus, frost, and iris, plus a rotating 5-facet prism for mid-air texture.
Gobos and Effects for Dynamic Looks
Two gobo wheels expand versatility, including a rotating, interchangeable glass wheel (7 + open) and a static metal wheel (9 + open), with indexing and continuous scroll at variable speeds. Custom gobos created in collaboration with leading designers can be stacked on top of one another for layered, dynamic effects. Electronic shutter and strobe (0 to 20 Hz) support everything from subtle shimmer to high-impact hits, and Move-in-Black helps keep transitions clean during programming.
Control and Integration
Integrate the Maverick Force S Spot into modern lighting networks using DMX, sACN, Art-Net, or W-DMX for flexible deployment across touring, corporate, and installed systems. RDM support enables remote addressing and troubleshooting, and selectable PWM (600 Hz to 15,000 Hz) helps optimize performance for broadcast and video capture. Additional production-friendly touches include a battery backup display with auto-rotation for easier rigging and service access, three setup menu presets with preset sync for fast multi-fixture shop configuration, and a USB slot for software updates.
Performance and Physical Details
The fixture uses a 350 W cool white LED engine (8400 K) with a 50,000-hour life expectancy and is rated for 540° pan and 270° tilt with multiple pan/tilt range options. Output specifications include 20,000 lumens at the source and 14,407 lumens output, with illuminance up to 62,004 lux at 5 m (3.8°). The compact body stands just over 2 ft tall and measures 14 x 8.8 x 25.0 in (360 x 224 x 636 mm), weighing 47.4 lb (21.5 kg), making it a practical choice when rigging capacity and truck space matter.
Additional Details
| Ships From: | United States |
| Manufacturer: | Chauvet |
| Condition: | Good |
| Model: | MAVERICKFORCESSPOT |
| Item #: | 60516 | 4Wall/UsedLighting.com Owned |
| Tags: | Moving lights, Leds, Packages |
- Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
- 16-bit dimming of master dimmer for smooth control of fades
- Variable CMY color mixing system to create a wide pallet of colors
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options
- RDM Enabled for remote addressing and trouble shooting
- 3.8° to 43.4° zoom range for variable beam sizes
- Iris, 5-facet prism, and frost for beam control
- True 1 compatible power input
- Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
- USB slot for software uploads
- Battery backup display with auto-rotate depending on fixture orientation
- Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
- Color Temperature (at full): 6858 KCRI: 68.6CRI with CRI filter: 89.6Front Lens Diameter: 119 mm
- Beam Angle: 3.8° to 36.5°
- Field Angle: 4.8° to 40.4°
- Cutoff Angle: 5.1° to 43.4°
- Zoom Range: 3.8° to 43.4°
- Lumens - Source: 20,000
- Lumens – Output: 14,407Illuminance (3.8°): 62,004 lux @ 5 m
- Illuminance (43.1°): 1,745 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY Wheels
- Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
- Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
- Dimensions: 14 x 8.8 x 25.0 in (360 x 224 x 636 mm)
- Weight: 47.4 lb (21.5 kg)
- (2) Maverick Force S Spot
- (2) Powercon Cable
- (4) Omega Bracket
- (1) Dual Road Case
