ROE Graphite GP3.1 LED Video Wall
Description
This listing is for a ROE Graphite GP3.1 LED Video Wall. Built around a 3.125mm pixel pitch, the GP3.1 platform is a strong fit for corporate events, touring production, broadcast environments, houses of worship, and other applications where close-viewing detail and clean image reproduction matter. These LED Video Tiles show minor wear and are in like new condition.
Designed for flexible deployment, Graphite GP3.1 supports front and rear serviceability for easier maintenance in tight installs, and offers concave/convex curving from 5° to 5° to help create subtle wraps or creative scenic looks. With a 3840Hz refresh rate, content stays stable on camera and to the eye, while the 14-bit grayscale helps maintain smoother gradients for video and graphics.
Performance for Live Production and Install
The GP3.1 uses SMD 1515 Black LEDs and delivers up to 1500 nits max brightness (calibrated), supporting use in bright indoor venues and controlled outdoor-facing environments (note the IP40 rating indicates indoor protection). Wide viewing angles (140° vertical, 160° horizontal) help keep color and brightness more consistent across the audience area.
Panel Sizes, Power, and Thermal Details
The system includes full and half panel formats to help you build common wall sizes and fine-tune overall dimensions. Full panels measure 500mm x 1000mm x 80mm (19.7” x 39.4” x 3.1”) and weigh 9kg (19.84lbs). Half panels measure 500mm x 500mm x 80mm (19.7” x 19.7” x 3.1”) and weigh 5.2kg (11.44lbs).
Power draw is rated up to 320W max (160W average) per full panel and 160W max (80W average) per half panel. Thermal output is rated at 1100 BTU max (500 average) per full panel and 550 BTU max (250 average) per half panel, useful for planning power distribution and HVAC in permanent installs. Scan ratio is 1/16, and the wall is solid (non-transparent).
Included in this package are:
- (114) Graphite GP3.1 LED Panel, Full
- (22) Graphite GP3.1 LED Panel, Half

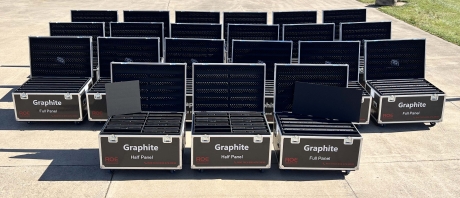

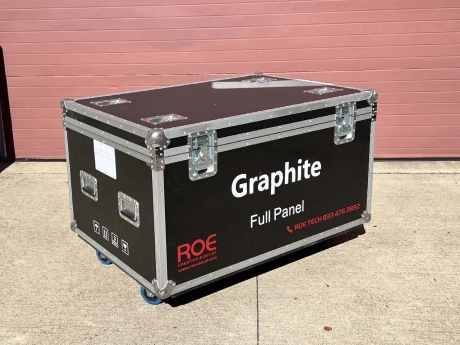

- (21) Road Case
Additional Details
| Ships From: | Wellington, OH, USA |
| Manufacturer: | ROE |
| Condition: | Like New |
| Model: | GP3.1 Graphite Series |
| Item #: | 60236 | Brokered |
| Tags: | Leds, Pro video, Led video tiles, Packages, Led panels |
- Pixel Pitch: 3.125mm
- SMD 1515 Black
- 1500nits Max Brightness Calibrated

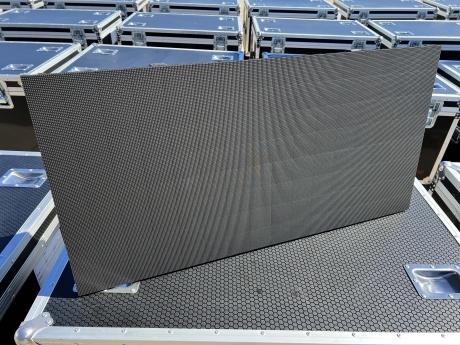

- Panel Dimension (Full): 500mm x 1000mm x 80mm / 19.7” x 39.4” x 3.1”
- Panel Dimension (Half): 500mm x 500mm x 80mm / 19.7” x 19.7” x 3.1”
- Weight (Full): 9kg | 19.84lbs
- Weight (Half): 5.2kg | 11.44lbs
- Power Consumption Max/Average (Full Panel): 320W / 160W
- Power Consumption Max/Average (Half Panel): 160W / 80W
- BTU Max/Average (Full Panel): 1100 / 500
- BTU Max/Average (Half Panel): 550 / 250
- Transparency: Solid

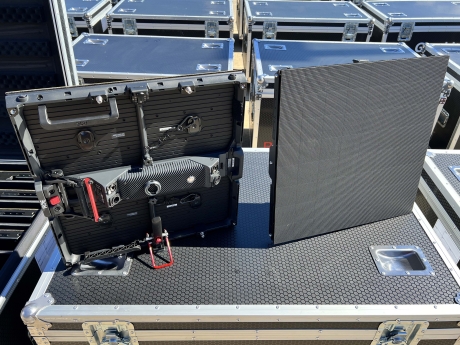

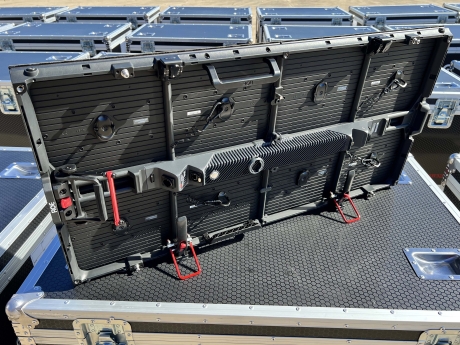

- Serviceability: Front / Rear
- Curving (Concave & Convex): Concave 5° ~ Convex 5°
- Viewing Angle Vertical: 140°
- Viewing Angle Horizontal: 160°
- Refresh Rate: 3840Hz
- Gray Scale: 14bit
- Scan Ratio: 1/16
- IP40
- (114) Graphite GP3.1 LED Panel, Full
- (22) Graphite GP3.1 LED Panel, Half
- (21) Road Case
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Wellington, OH, USA
