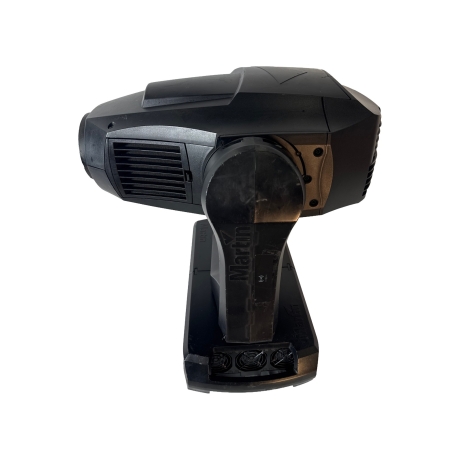

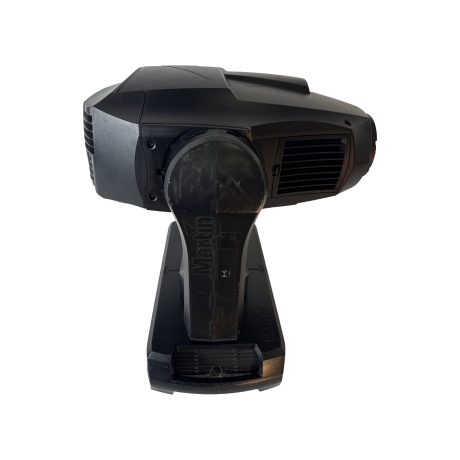

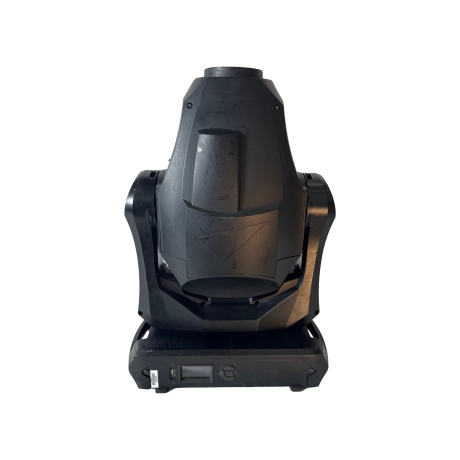

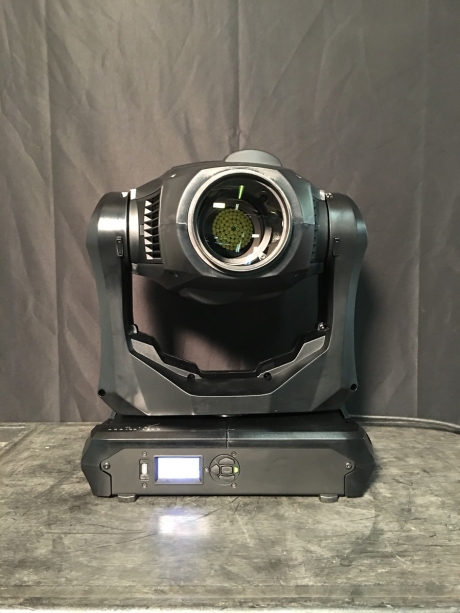

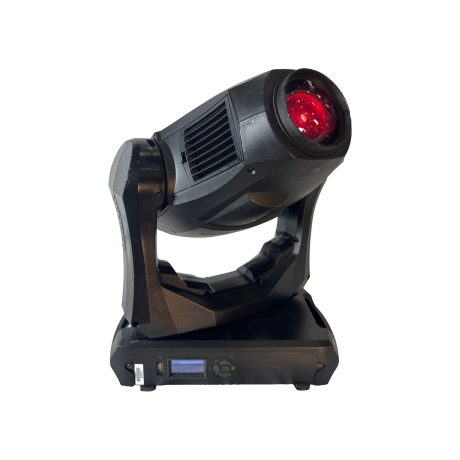

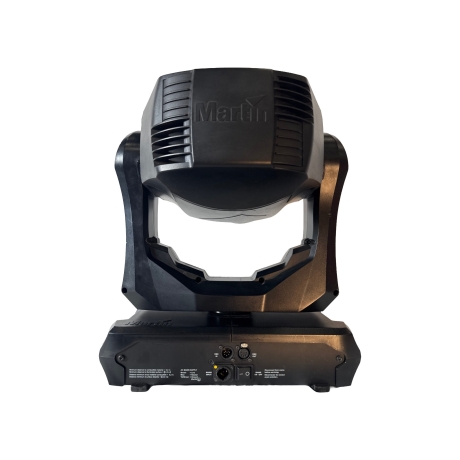

Martin MAC Quantum Profile
Description
These Martin MAC Quantum Profile LED moving lights have heavy wear but are in good working condition.
This extremely bright LED profile fixture is built for crisp, controllable projection in concerts, theatrical rigs, broadcast studios, and corporate events, delivering a flat field with high contrast on scenic surfaces as well as in mid-air.
Output, Color, and Beam Control
A fast, smooth CMY color mixing system provides precise color control from 0 to 100% per channel, supported by a color wheel with 6 color filters plus open for quick, repeatable looks. Electronic dimming offers four curve options, helping you match fades to camera or stage needs.
Gobos, Effects, and Animotion FX
For texture and aerial effects, the Quantum Profile includes both a rotating gobo wheel (6 interchangeable gobos plus open with rotation, indexing, and shake) and a static gobo wheel (10 gobos plus open with indexing, rotation, and shake). Beam shaping is expanded with a rotating three-facet prism, a motorized iris (0 to 100% with pulse effects), and an electronic shutter with variable-speed regular and random strobe. The built-in Animotion FX system enables beam animations for dynamic movement in the air and on surfaces.
Movement, Zoom, and Focus
Super high-speed movements support fast programming and energetic looks, with 540° pan and 268° tilt plus adjustable pan and tilt speed via the onboard control panel and DMX. Motorized zoom and focus (with zoom-focus tracking) help keep projections sharp across throw distances, using a 1:3 zoom range.
Form Factor and Practical Details
- Length: 452 mm (17.8 in.)
- Width: 431 mm (17.0 in.) across yoke
- Height: 642 mm (25.3 in.) head straight up / 648 mm (25.5 in.) maximum
- Weight: 23.2 kg (51.1 lbs.)
With consistent photometric performance via LED technology and a compact, low-weight design, the MAC Quantum Profile is positioned as the first real alternative to a 700 watt HID profile fixture while keeping the feature set expected in professional touring and install environments.
Additional Details
| Ships From: | Mt. Juliet, TN, USA |
| Manufacturer: | Martin |
| Condition: | Fair |
| Item #: | 59561 | Brokered |
| Tags: | Moving lights, Leds, Martin, Led moving lights |
- Flat field, crisp image, high contrast
- First real alternative to a 700 watt HID fixture
- Very low weight and compact design
- Super high-speed movements and effects
- Full feature set including color mixing and 1:3 zoom
- Consistent photometric performance via LED technology
- Electronic dimming: Four dimming curve options
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 color filters plus open
- Beam effects: Rotating three-facet prism
- Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
- Iris: 0 - 100%, pulse effects
- Zoom: Motorized
- Focus: Motorized, with zoom-focus tracking
- Shutter effect: Electronic, with variable speed regular and random strobe
- Pan: 540°
- Tilt: 268°
- Pan and tilt speed: Adjustable via onboard control panel and DMX
- Length: 452 mm (17.8 in.)
- Width: 431 mm (17.0 in.) across yoke
- Height: 642 mm (25.3 in.) head straight up / 648 mm (25.5 in.) maximum
- Weight: 23.2 kg (51.1 lbs.)
- (1) Quantum Profile
