Martin MAC Ultra Performance
Description
Ships from outside of the United States

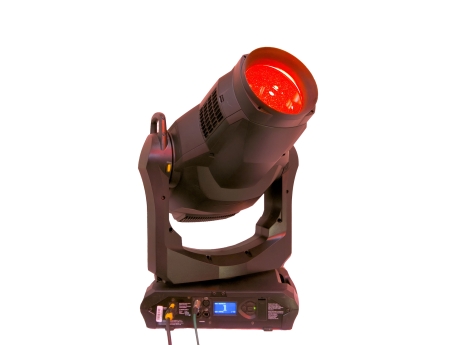

These Martin MAC Ultra Performance LED moving lights have heavy wear but are in good working condition.
The Martin MAC Ultra Performance is an extremely bright LED moving head built for large-scale concert and touring rigs, while staying suitable for noise-sensitive broadcast and theater applications thanks to its low-noise cooling system and user-selectable output vs. sound level control.
Based on the 1150 W, 6000 K proprietary LED light engine (minimum LED lifetime: > 50,000 hours), the fixture delivers high resolution dimming and strobing plus Martin’s unique Animotion effect. Output is rated at 46,500 lumens in projection, with peak luminous intensity up to 3,000,000 cd. The optical system includes a 160 mm front lens, high resolution projection, precision focus-control, and a 1:7 zoom range (8.0° to 54° field angle) for everything from tight, punchy beams to wide coverage.
Color, Beam Shaping, and FX
For looks that translate well on stage and on camera, the MAC Ultra Performance provides uniform CMY color mixing, variable color temperature control (5800 K to 2850 K), and a color wheel with 6 interchangeable dichroic filters, including a Spectral Enhancement Filter and spectral correction options.
Beam shaping and effects include Martin’s Extended Framing system, with individual framing control (+/- 30° across the entire beam) and +/- 83° module rotation, plus a full function animation wheel (indexing and continuous rotation with variable angle), two layers of rotating gobos (5 interchangeable gobos plus open on each wheel), iris, frost (fade in), and a 4-facet prism.
Movement and Control
Responsive pan and tilt support fast cueing and accurate repositioning, with 540° pan and 268° tilt. The fixture also supports P3 videomapping of fixture color and/or intensity (10 segments), along with two ranges of pre-programmed FX for quick programming.
Physical and Installation Notes
The MAC Ultra Performance is designed for professional deployment in truss and floor positions. Minimum center-to-center spacing for side-by-side installation is 830 mm (32.7 in.). Fixture dimensions include 660 mm head length, 468 mm base length, 312 mm base width, 520 mm width across yoke, and up to 876 mm overall height. Weight is 44.0 kg (97.0 lbs.).
Additional Details
| Ships From: | Germany |
| Manufacturer: | Martin |
| Condition: | Fair |
| Item #: | 59081 | Brokered |
| Tags: | Moving lights, Martin |
- 1150 W proprietary LED light engine
- 84 x 20 W white LEDs
- Minimum LED lifetime: > 50,000 hours
- Light Engine Luminous Output: 90,000 lumens
- Fixture Luminous Output: 46,500 lumens
- Peak Luminous Intensity: 3,000,000 cd
- CCT: 5800 K (+/- 250 K)
- 160 mm front Lens
- 1:7 zoom range (8.0° - 54° field angle)
- High resolution projection system
- 0 - 100% continuous dimming and strobe effects
- Choice of four dimming curves
- CMY color mixing
- Color temperature control (5800 - 2850 K)
- Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
- Rotating gobo wheel 1 includes 5 interchangeable gobos + open
- Rotating gobo wheel 2 includes 5 interchangeable gobos + open
- Gobo animation wheel, indexing, continuous rotation with variable angle
- Frost (fade in)
- 4-facet prism
- Iris
- Zoom
- Focus with auto tracking
- Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
- Pan: 540°
- Tilt: 268°
- P3 videomapping of fixture color and/or intensity (10 segments)
- Pre-programmed effects: Two ranges of pre-programmed FX
- Low noise cooling system
- User-selectable output vs. sound level control
- Minimum center-to-center distance in side-by-side installation: 830 mm (32.7 in.)
- Length (head): 660 mm (26.0 in.)
- Length (base): 468 mm (15.5 in.)
- Width (base): 312 mm (12.3 in.)
- Width (across yoke): 520 mm (20.5 in.)
- Height (head straight up): 864 mm (34.1 in.)
- Height (maximum): 876 mm (34.5 in.)
- Weight: 44.0 kg (97.0 lbs.)
- (1) MAC Ultra Performance
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Germany
