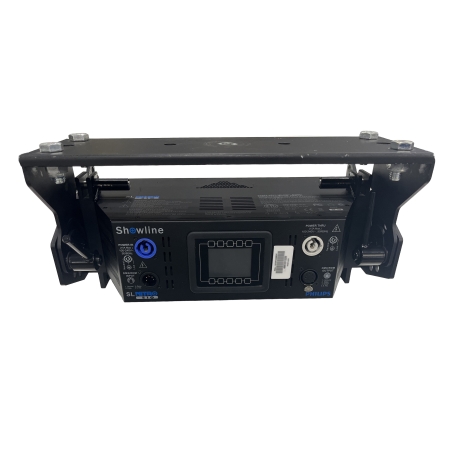

Philips Showline SL NITRO 510 (Pkg of 8)

Package of (8) SL NITRO 510 w/ 8-way case included. They may show signs of heavy wear but are in good working condition.

The Philips Showline SL NITRO 510 is a LED based strobe luminaire built for concerts, theatrical rigs, broadcast environments, and permanent installations that need intense, repeatable bursts of light and dynamic audience-facing effects. A tightly packed array of over 1300 high power LEDs delivers maximum output with a full-field, even distribution across 1200, helping effects read clearly whether the fixture is used as a traditional strobe, a stage wash accent, or pointed directly toward the crowd.

Output and Looks for Strobe or Blinder Use

With over 68,000 lumens of output and a 6500 K color temperature, the SL NITRO 510 rivals conventional strobes while maintaining a crisp, modern look. It also supports continuous-on operation for a sustained blinder effect, giving you flexibility beyond single-flash hits.

Pixel-Zone Control and Built-In Effects

Six unique zones of control provide the flexibility to build segmented looks, sweeps, and intensity patterns across the face of the fixture. Preprogrammed special effects, built-in presets, effects, and chases help create energetic strobe and motion-style looks quickly, while multiple DMX modes make it easy to integrate into both simple and advanced control workflows.

Rigging and System Compatibility

A unique quick-connect systems allows SL NITRO 510 units to connect together easily top-to-bottom and side-by-side. The form factor of the SL NITRO 510 matches the SL BAR 520 so the two luminaries can be interconnected, supporting modular arrays and clean fixture-to-fixture layouts for touring carts, scenic builds, and architectural lines.

Control, Power, and Touring Practicalities

Addressing and setup are handled through the on-board Showline standard LCD menu system, with remote configuration available via RDM over DMX-512A. Power and data are designed for pass-through runs, with PowerCon in and thru connections plus 5-pin DMX-512A (RDM) in and thru connections. Cooling is managed by a quiet temperature-controlled fan, and the auto-ranging power supply supports 100-240 V, 50/60 Hz for flexible deployment.

Construction and Size

Built with rugged construction and rated IP20, the SL NITRO 510 is intended for indoor use. Each fixture measures 16” x 11” x 4” and weighs 15.4 lbs, balancing output and durability with a form factor that is easy to array and transport.

• Rugged Construction, IP20
• Physical similarity and connectivity with SL BAR 520
• Quick connections for linking fixtures end-to-end or top/bottom
• 6500 K color temperature
• Six independent zones of control
• Preprogrammed special effects
• Continuous blinder effect
• Built-in presets, effects and chases
• Multiple DMX modes for total control and easy retrofits
• On-board LCD Menu System for addressing and setup
• Remote configuration available via RDM
• PowerCon in and thru power connections
• 5-pin DMX-512A(RDM) in and thru connections
• Quiet temperature-controlled fan cooling
• Auto-ranging power supply (100-240 V, 50/60 Hz)
• 16” x 11” x 4”, 15.4 lbs
